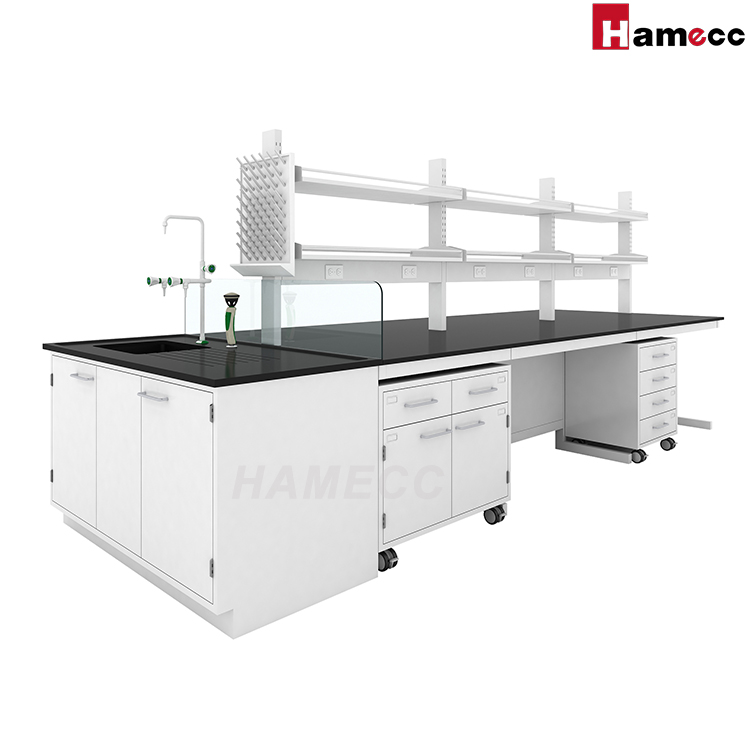

The C-Frame Laboratory Workbench features a full steel C-frame structure with suspended under-bench cabinets, providing generous knee and legroom while maintaining flexible laboratory storage. Constructed from 1.2 mm cold-rolled steel with an SEFA 8M-2020 epoxy resin powder coating, it supports integrated laboratory utilities, customizable worktops, and a variety of storage configurations for modern laboratory environments.
Company Name :
HAMECC (shanghai) lab solutions co.,ltdBrand :
HAMECCDimension :
L1200/1500/1800*D750/1500*H850mmStructure :
Full steel C-Frame structureWorkop :
Can provide as per Customer DemandUnder Bench Cabinet :
Suspended under cabinet/Mobile cabinetsHanging Cabinet module :
Can install hanging cabinets on top of reagent shelf module
The C-Frame Laboratory Workbench is designed to provide an open and ergonomic laboratory workspace. The C-frame structure securely connects the frame and worktop, while the under-bench cabinets are suspended from the steel frame, creating additional knee and legroom for users and allowing the installation of suspended or mobile storage units.
Manufactured from 1.2 mm cold-rolled steel with an SEFA 8M-2020 epoxy resin powder coating, the workbench offers durability, corrosion resistance, and flexible laboratory integration. It can also accommodate laboratory accessories, utility services, and small laboratory equipment according to application requirements.
The full steel C-frame securely supports the worktop while allowing suspended storage cabinets underneath.
The suspended cabinet design provides increased knee and legroom, improving accessibility beneath the workbench.
Manufactured from 1.2 mm cold-rolled steel, providing structural stability and long-term durability.
The epoxy resin powder coating offers:
The rear function box enables hidden installation of power and gas services, helping maintain an organized work surface.
The workbench supports integration with laboratory equipment including:
The functional column module allows water, electricity, gas (non-flammable and non-explosive gases), network, and other laboratory utilities to be connected from the main pipeline to terminal workstations while supporting bidirectional fast docking for future laboratory layout adjustments.
| Item | Specification |
|---|---|
| Product Type | C-Frame Laboratory Workbench |
| Structure | Full Steel C-Frame Structure |
| Dimensions | L1200 / 1500 / 1800 × D750 / 1500 × H850 mm |
| Frame Material | Cold-Rolled Steel |
| Steel Plate Thickness | 1.2 mm |
| Leg Size | 40 × 60 × 2 mm |
| Coating | Epoxy Resin Powder Coating |
| Standard | SEFA 8M-2020 |
Available worktop materials include:
Can be provided according to customer demand.
Hanging cabinets can be installed above the reagent shelf module.
| Item | Configuration |
|---|---|
| Electrical Supply | Power outlets on the exterior in the service panel |
| Water & Gas Supply | Optional air cock, water cock |
| Cabinet Options | Standard steel cabinet, safety cabinet, acid cabinet, waste liquid collection cabinet, etc. |
| PVC Skirting Line | Can be provided according to customer demand |
