Closed glass lined reaction tank

Parameter	Tank (Internal)	Jacket (External)
Design Pressure (MPa)	0.4	0.6
Design Temperature (℃)	-19/200	-19/200

Company Name :
Linyi Haixin Chemical Equipment Co., Ltd.
Brand :
haixinlan

Inquire Now

Share To :

Product categories

Brand Classification

haixinlan

New Products

Product Details

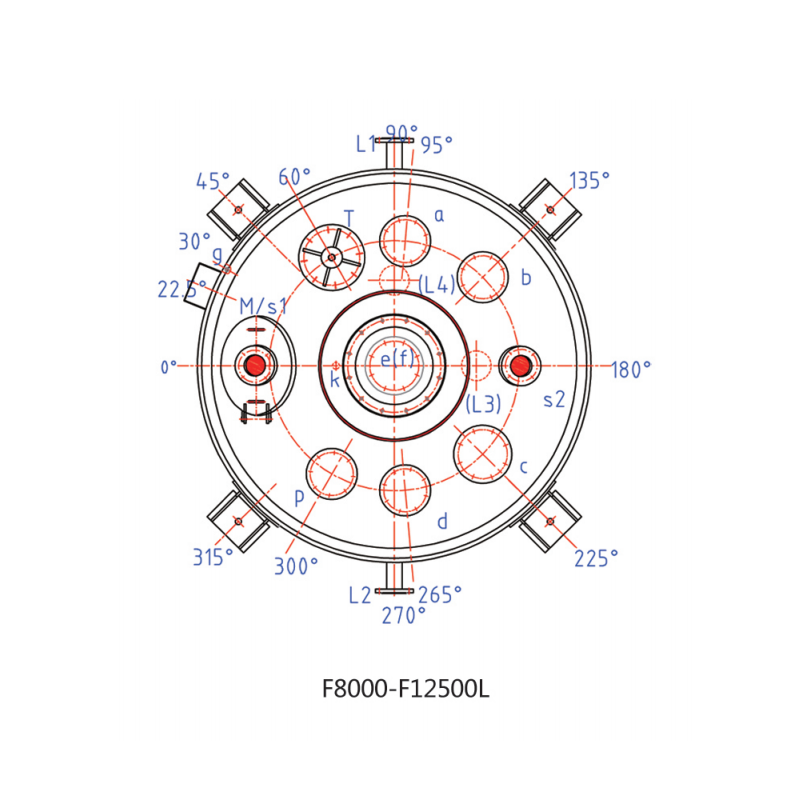

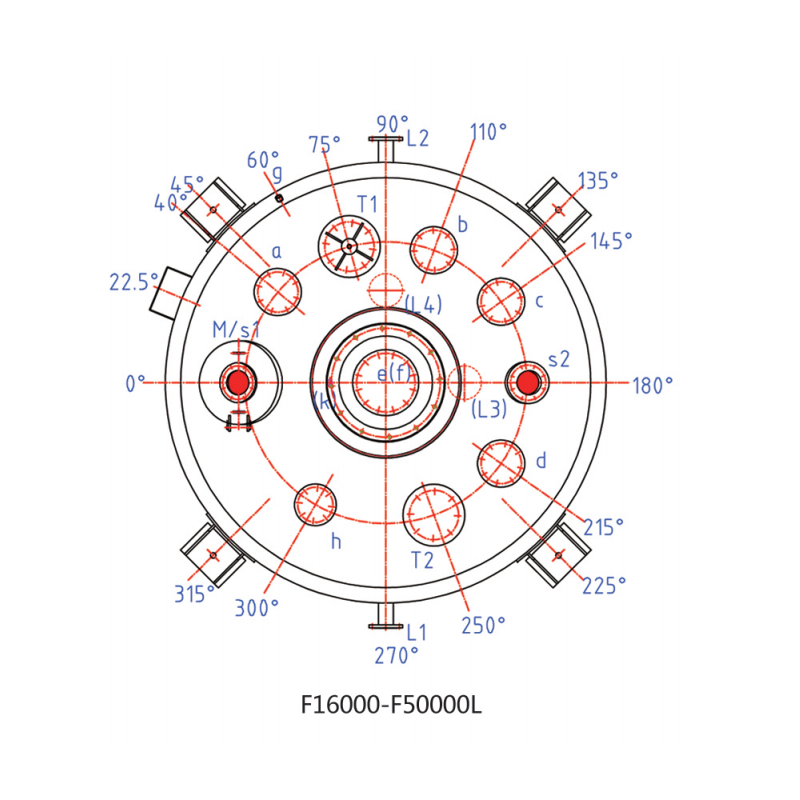

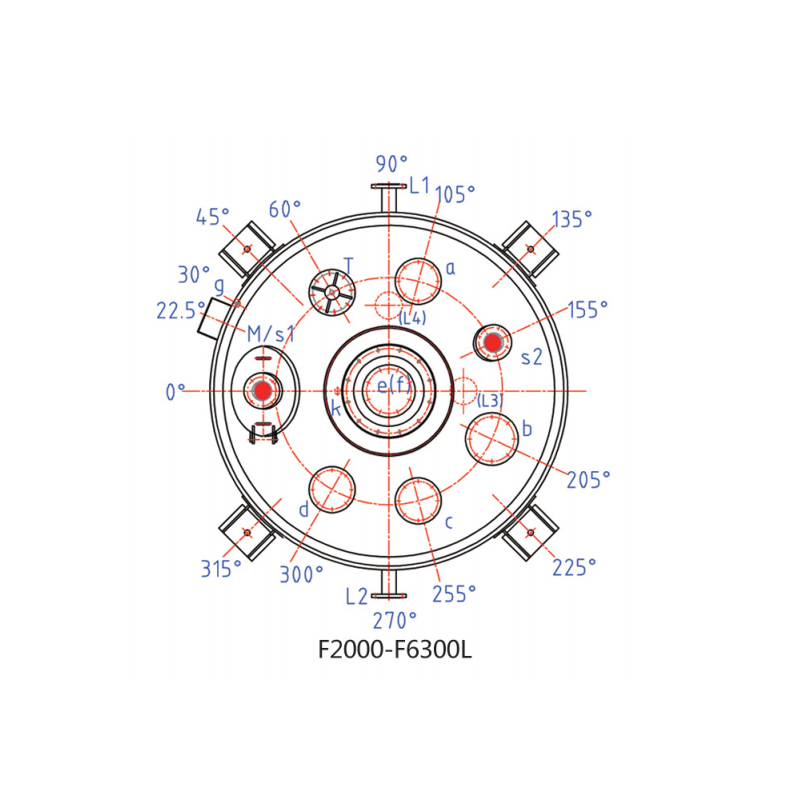

Symbol	Purpose
M	Manhole
a,b,c,d,p,h	Spare Ports
e	Stirring Port
f	Discharge Port
T1,T2	Thermometer Ports
s1,S2	Sight Glass Ports
l1,L2,L3,L4	Jacket Inlet/Outlet
n	Vent
k	Drain Port

Size		F2000	F3000	F5000	F6300	F8000	F10000	F12500	F16000	F20000	F30000	F50000
Full volume(㎡)		2.4	3.85	6	6.82	9.04	11.65	13.6	17.28	21.7	34.3	56.6
Jacket volume(㎡)		0.48	0.62	0.85	0.98	1.57	1.8	2.1	2.38	2.74	3.5	7.9
Heat transfer area(㎡)		7.6	9.84	13.96	15.8	18.5	21.6	25.2	29.2	33.9	43.6	67.4
Internal surface area(㎡)		9.75	12.95	17.76	20.05	24.16	27.66	31.66	35.66	41.58	56.48	79.5
Motor power（KW）		4	5.5	7.5	11	11	15	15	22	22	37	55
Machine reference weight（Kg）		2250	3220	4600	5130	7060	8040	9490	12570	14350	21980	35150
Main size	D1	1300	1600	1750	1750	2000	2200	2200	2400	2600	3200	3400
	D2	1450	1750	1900	1900	2200	2400	2400	2600	2800	3400	3600
	D3	1640	1980	2151	2152	2507	2708	2708	2912	3181	3900	4800
	D4	420	455	455	455	510	510	510	650	650	810	940
	D5	1000	1120	1220	1220	1400	1540	1540	1680	1820	2200	2260
	D6	30	30	30	30	36	36	36	36	36	36	36
	D7	600	600	600	600	800	800	800	900	900	1300	2000
	H1	3930	4110	4110	5500	5700	5940	6460	7500	7840	8490	10230
	H2	1390	1400	1400	1860	1895	1935	1935	2708	2708	3027	3300
	H3	170	170	170	170	205	205	205	220	220	285	705
	H4	845	1020	1020	1100	1250	1300	1300	1350	1500	1800	2300
	H5	2145	2295	2295	3255	3340	3560	4080	4335	4670	4930	6765
	H6	620	700	700	750	800	900	900	950	1050	1150	1250
	d0	80*8	95*8	95*8	95*10	110*12	110*12	110*12	140*14	140*14	160*14	180*16
	d1	700	700	700	700	900	900	900	1000	1000	1200	1700
	d2	650	650	650	650	750	750	750	850	850	1200	1700
	h1	550	550	550	650	650	650	650	800	1000	1200	1700
	h2				650	650	650	650	800	1000	1200	1700
	B1	510	510	510	510	510	550	550	550	550	510	510
	B2	400	400	400	400	400	470	470	470	470	550	550
Nozzle size table	M	400*300	400*300	400*300	400*300	400*300	400*300	400*300	400	400	450	400
	a	100	100	125	125	150	150	150	150	150	200	200
	b	100	125	150	150	150	150	150	150	150	200	200
	c	100	100	125	125	150	150	150	150	150	200	200
	d	100	125	125	125	150	150	150	150	150	200	250
	p					125	125	125
	h								125	125	200	200
	T1	100	100	125	125	200	200	200	200	200	200	250
	T2						200	200	200	200	200	200
	e	125	150	150	150	200	200	200	250	250	250	250
	f	100	125	125	125	125	150	150	150	150	150	150
	s1-s2	125	125	125	125	125	125	125	125	125	125	150
	L1-L4	40	50	65	65	65	80	80	100	100	100	100
	g	G1/2	G1/2	G1/2	G1/2	G3/4	G3/4	G3/4	G3/4	G3/4	G3/4	G3/4
	k	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2
