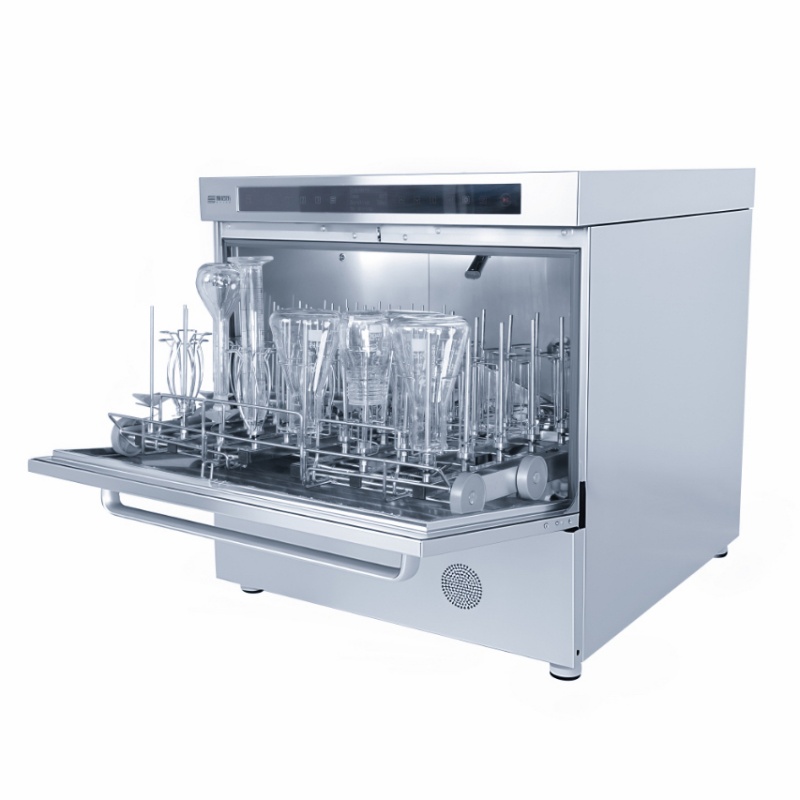

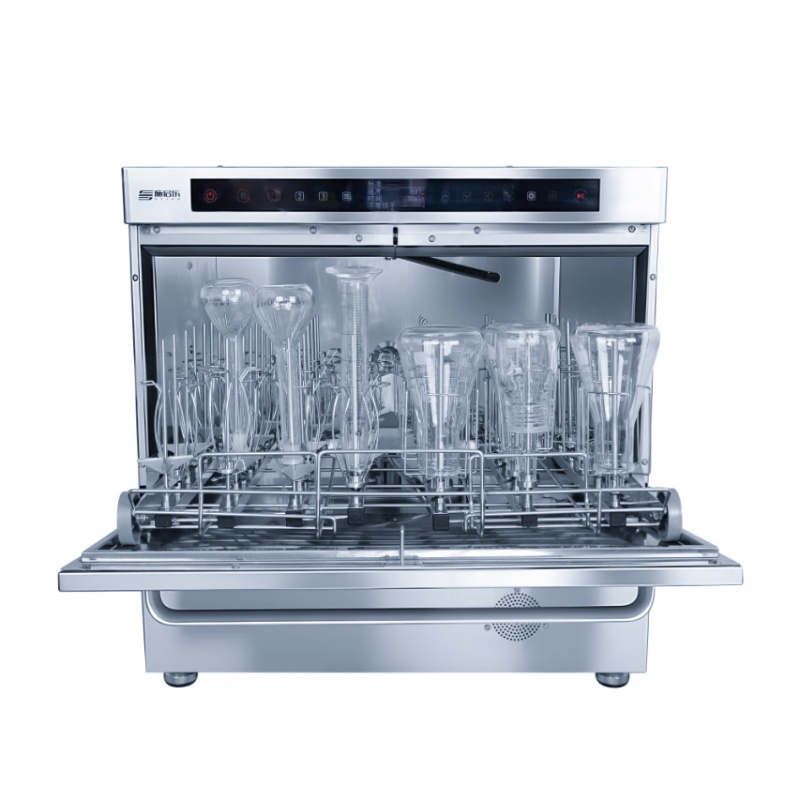

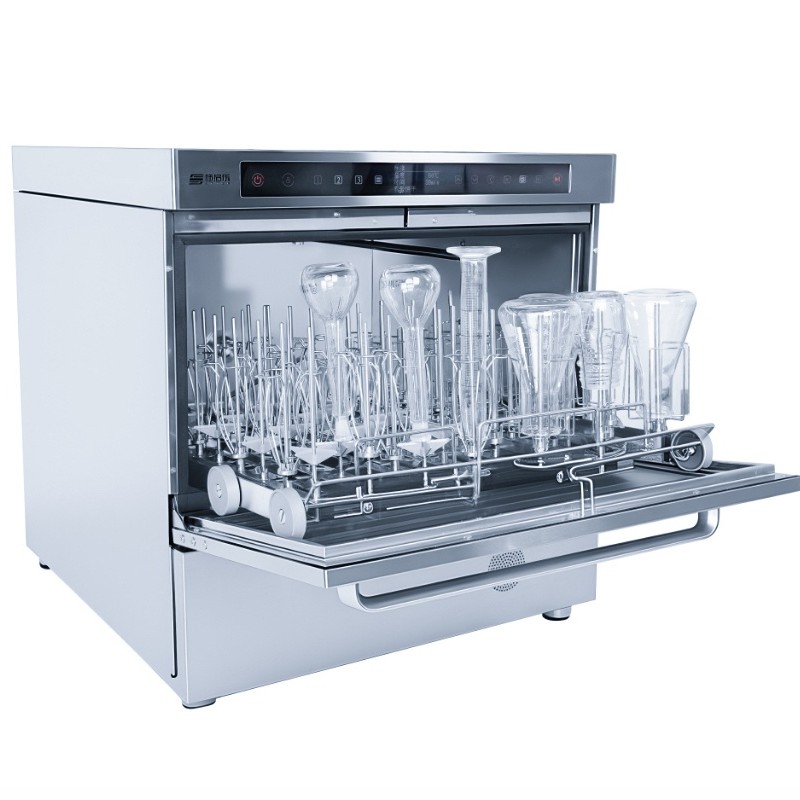

STIER Table Top Laboratory Glassware Washer

2026-03-16

Looking for a compact yet powerful solution for trace and ultra-trace lab glassware cleaning? In this video, we provide a complete operation guide for the STIER S20D Table-Top Laboratory Glassware Washer, perfectly designed for LC, GC, and LC-MS/MS applications.



Why Choose STIER Table Top Laboratory Glassware Washer



If you prefer reading over watching, here is everything you need to know about why the S20D is a game-changer for laboratories:



  • 5D Non-Destructive Intelligent Cleaning: Optimizes power, temperature, drying, water quality, and cleaning solutions to ensure spotless results without damaging your fragile glassware.

  • Patented Condenser & Hot Air Drying: Features a semiconductor-guided drying system with NO pollutant precipitation. Plus, the patented condenser prevents vapor venting into your room, operating independently of your lab's ventilation system!

  • Smart Rear Water Supply & Softener: A new generation flow path provides stronger cleaning power. The built-in intelligent softener allows you to use tap water directly, saving massive amounts of pure water.

  • Lego-Style Modularity: Enjoy individually adjustable and highly customizable basket racks. Wash diverse glassware simultaneously with flexible, height-adjustable combinations.

  • Maintenance-Free Peristaltic Pump: Utilizes acid/alkali-resistant neoprene tubes to avoid crystallization of the cleaning solution inside.



Technical Specifications (S20D Model)



Parameter Specification
External Dimensions W600 * D600 * H690 (mm)
Material (External / Inner) 304 SS (Fingerprint-Resistant) / 316 Stainless Steel
Drying Method Hot Air Drying
Power Supply & Total Power 220V / 3.3 kW (Heating: 3kW, Washing Pump: 0.3kW)
Water Supply & Connector Cold/Hot/Purified Water (International Quick Connector)
Tap Water Pressure 0.04 - 1.00 MPa
Noise Level & Weight ≤ 70 dBA / 55 kg
Optional Add-ons HEPA Filter, Conductivity Sensor
