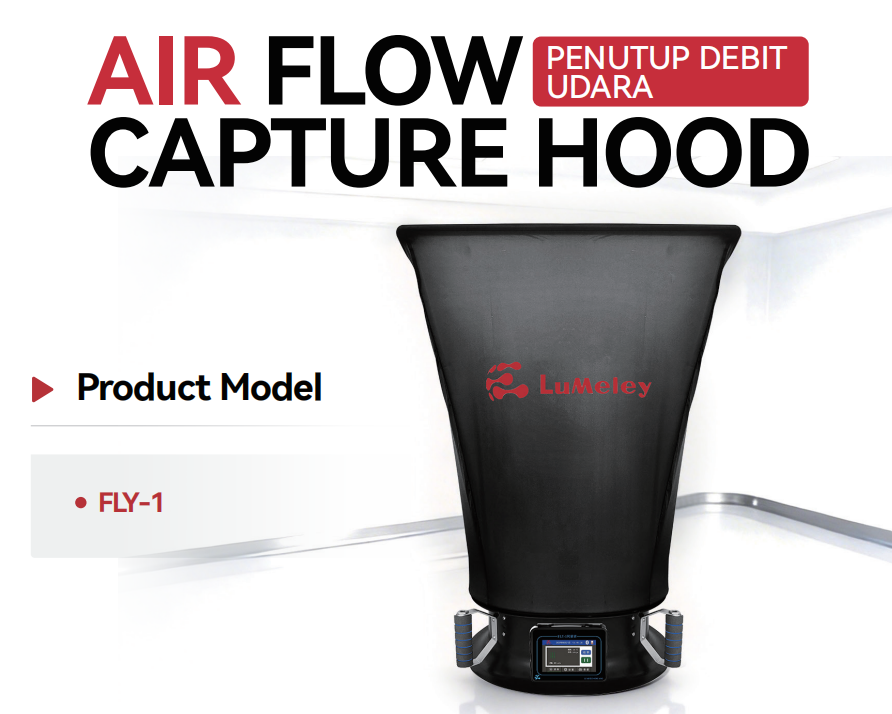

Digital Air Capture Hood | Touch Screen & Bluetooth | FLY-1 Balometer with Data Export for HVAC
The FLY-1 Digital Air Capture Hood (Balometer) is a high-precision testing instrument designed for HVAC commissioning and air volume measurement (150~4000m³/h). Unlike traditional flow hoods, the FLY-1 features a durable 5-inch Tempered Glass Touch Screen for intuitive "Man-Machine Interaction," making on-site operation simpler and faster.
Company Name :
Lumeley (Suzhou) Biotechnology Co.,Ltd.Brand :
LumeleyMeasuring range of air volume :
150~4000m³/hReal-time U disk export vertical test data :
±5%F.SReal-time U disk export vertical test data :
1m³/hLumeley (Suzhou) Biotechnology Co.,Ltd. is an innovative enterprise that integrates scientific research, development, production, sales, and service. The company is committed to providing comprehensive solutions for microbiology laboratories in China.
At present, the company's products include microbial limit testers, sterile testing instruments (intelligent bacterial collectors), and environmental monitoring equipment (dust particle counters, planktonic bacteria samplers, and air flow meters). Some products have obtained national patents and introduced advanced foreign technologies, with product quality and performance in a leading position in China.
1
Characteristic
Reminder Function
Historical data deletion reminder function prevents misoperation.
Design of Tempered Glass Touch Screen
Design of tempered glass touch screen, simple, elegant and durable.
Excellent Man.Machine Interaction
5-inch capacitive color LCD screen design, friendly man-machine interface, simple and easy to operate.
Bluetooth Connection
Manually search for matching exteral Bluetoothprinting device.
Data Storage
Test data within 4 hours after the data is saved afterpower failure.
Built-in Battery
Built-in battery can work continuously for 5 hours.
|
PARAMETER & MODEL
|
FLY - 1
|
|
Measuring range of air volume
|
150~4000m³/h
|
|
Real-time U disk export vertical test data
|
±5%F.S
|
|
Real-time U disk export vertical test data
|
1m³/h
|
|
Number of data stored
|
10000pcs
|
|
Size of standard fabric shade
|
570x570mm & 830x830mm
|
|
Height of movable triangle support (optional)
|
3.1m
|
|
Weight
|
3.8kg
|
|
Header material and shape
|
ABS engineering plastic injection molding integrated molding
|
|
Pressure measuring range
|
-5 ~ +125Pa
|
|
Accuracy of pressure measurement
|
±1.5% full scale
|
|
Pressure measurement resolution
|
0.01Pa
|
|
Power supply mode
|
DC8.4V battery
|
To maintain accurate airflow measurements over time, proper maintenance of a capture hood is essential. This maintenance manual explains key inspection steps, calibration considerations, and daily care practices, helping users ensure consistent and reliable measurement results throughout the instrument’s service life.
