Central Pure Water Systems & Ultrapure Water Purification Solutions for Laboratories

For research institutes, university labs, clinical laboratories and pharmaceutical R&D centers, consistent water quality is the foundation of reliable experimental results. Many facilities struggle with uneven water quality across multiple stations, high maintenance costs, scattered consumable management, and difficulty meeting international compliance standards.

QiQin, an ISO-certified national high-tech enterprise with 15 years of industry experience and 39 patents, delivers a full portfolio of laboratory water purification solutions — from centralized pure water supply systems to benchtop ultrapure units. All products comply with GB/T 6682-2008, ASTM, CAP, CLSI, EP and USP standards, and carry CE certification, providing stable, traceable and compliant water supply for laboratories of all scales.

Compliance & Quality Credentials

As a professional water treatment manufacturer based in Changsha, China, QiQin specializes in R&D, production and after-sales service of pure water, ultrapure water and wastewater treatment systems for laboratories, medical facilities and biopharmaceutical industries.

• All laboratory water systems meet the highest water quality standards defined by GB/T 6682-2008, ASTM, CAP, CLSI, EP and USP, with CE certification for global market access.
• Backed by 39 independent patents and 15+ years of industry experience, products are deployed in over 6000 customers across Asia, Europe, North America and beyond.
• Strict quality control runs through the entire production process, ensuring stable long-term performance and reliable alignment with laboratory GLP and GMP requirements.

Central Pure Water Systems: Centralized Supply for Multi-Lab Facilities

Central pure water systems deliver unified water production and distribution for multi-laboratory buildings, reducing per-liter operating costs and simplifying consumable management compared to scattered benchtop units. QiQin provides two core configurations to match different facility scales and reliability needs.

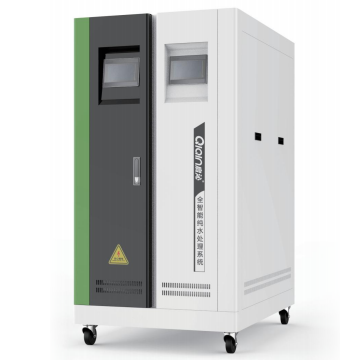

Dual-Core Central Pure Water System: Uninterrupted Supply for High-Demand Facilities

The dual-module central pure water system is designed for medium to large laboratory complexes with high water consumption and strict uptime requirements. Its dual-module architecture realizes one-for-use and one-for-standby operation, delivering 24/7 uninterrupted water production with automatic peak and low-demand adaptation.

Water production capacity ranges from 200 to 600 L/H. RO water conductivity reaches ≤15 μS/cm for single-stage RO and ≤5 μS/cm for two-stage RO, while ultrapure water resistivity reaches 18.25 MΩ·cm at 25°C. TOC is controlled below 5 ppb, microorganisms below 1 cfu/ml, and endotoxin below 0.001 Eu/ml.

Core features:

• Dual 10-inch HD touch screens with minimalist interactive design for intuitive operation
• Six-channel high-precision sensors for real-time water quality monitoring
• Fully integrated dual-module design with a footprint of less than 2 m², saving valuable lab space
• Dual-wavelength UV sterilization and antibacterial respirator to strictly control bacterial growth
• Date and time settings, optional scheduled power on/off, and complete fault & alarm recording
• Permission verification and water-electricity separation design for enhanced operational safety
• Built-in integrated water tank for stable water pressure across multiple water points

This system is ideal for university research complexes, hospital clinical laboratory departments and multi-disciplinary R&D centers that require continuous, reliable pure water supply.

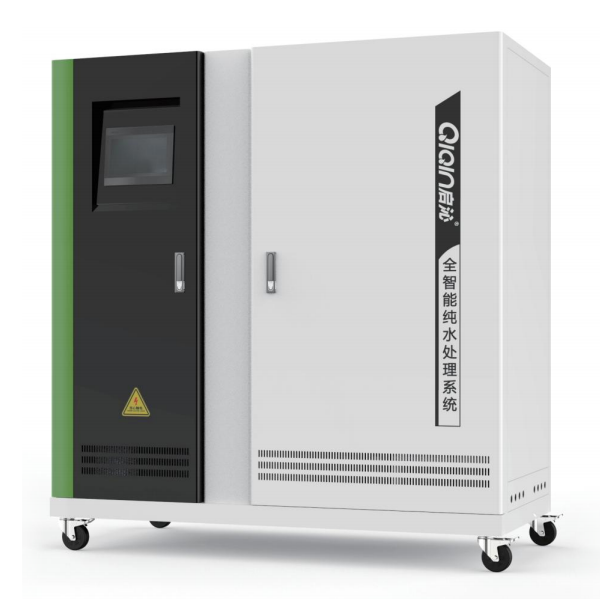

Single-Core Central Pure Water System: Cost-Effective Centralized Solution

The single-core central pure water system offers a cost-effective centralized water supply solution for small to medium-sized laboratory facilities. It adopts an all-in-one integrated design with a built-in water tank, delivering reliable water quality while minimizing floor space.

Available in 2RO, RED and 2RED configurations, it covers a water production range from 200 L/H to 2000 L/H to adapt to different scale requirements.

Core features:

• Fully automatic operation with real-time water quality monitoring and touch-button control
• Produces high-quality pure water (≤5 μS/cm) and ultrapure water (≥18.2 MΩ·cm) directly from municipal tap water
• Supports remote monitoring via IoT connectivity, enabling centralized management of system status
• Compact integrated structure reduces installation complexity and daily maintenance workload

Typical applications include laboratories in scientific research institutes, medical laboratory departments, and various physical, chemical, microbiological and analytical testing labs.

Benchtop Ultrapure Water Systems for Precision Lab Applications

For individual laboratories or dedicated analytical instruments, benchtop ultrapure water systems provide flexible, on-demand Grade I water. QiQin offers three product lines covering entry-level to high-end research scenarios.

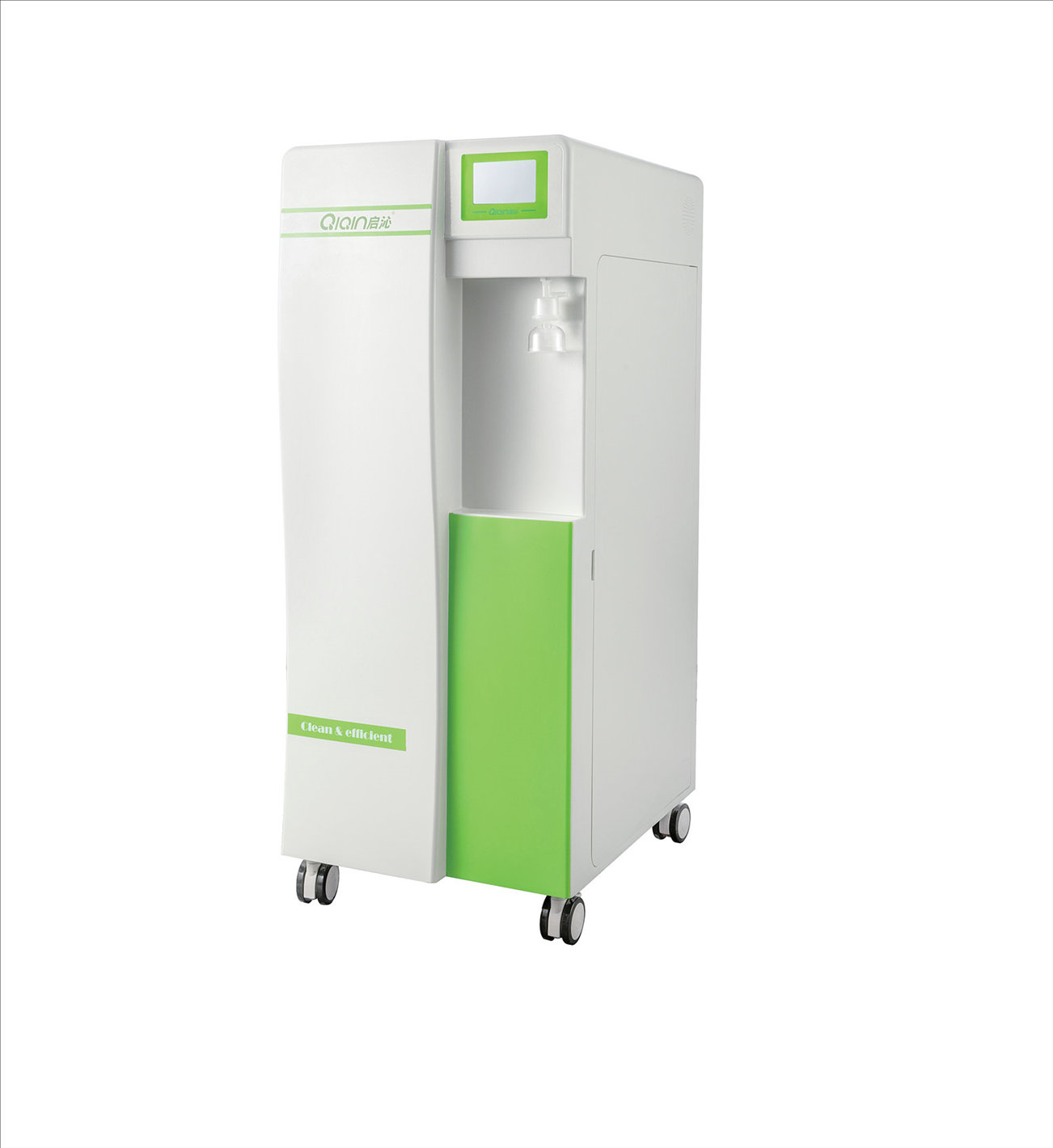

Q-STER-E Series: EDI-Based High-Efficiency Ultrapure System

The Q-STER-E series is a high-end ultrapure water system equipped with QiQin’s proprietary EDI (Electrodeionization) module technology. It produces stable Type I water with resistivity above 10 MΩ·cm at 25°C without chemical regeneration, reducing operating costs and wastewater discharge. When paired with a post-polishing ultrapurification module, it delivers ultrapure water up to 18.25 MΩ·cm.

Water production ranges from 10 L/H to 150 L/H to match different consumption demands.

Core technical advantages:

• Proprietary QiQin EDI module for stable water quality and long durability
• 5-inch large color touch screen with USB interface, supporting data copy, download, print and storage; automatically records 5 years of water quality data for laboratory statistics and compliance audits
• 3-channel online water quality monitoring for raw water/RO water, RO water/EDI pure water, and UP ultrapure water, plus detection of water temperature, TOC value and tank level
• Automatic RO membrane anti-scaling flushing program to extend membrane service life
• Freely controllable ultrapure water circulation system to maintain low bacterial contamination levels
• Two-level password protection (factory/user) to prevent unauthorized parameter changes, conforming to GLP specifications
• Consumable life tracking with automatic replacement alerts for pretreatment filters, RO membranes, UV lamps and polishing resins
• Quantitative water dispensing function (1–60 liters) for accurate experimental water use
• Original DOW RO membranes and ultrapurification resins for long membrane life and premium water quality
• Dual-wavelength (185nm & 254nm) imported UV lamp for sterilization and TOC reduction
• Imported 5000DUF ultrafiltration module for endotoxin removal, suitable for cell culture and IVF applications
• (0.45+0.1)μm imported PES composite terminal sterilizing filter to ensure sterile effluent
• QiQin patented sanitary one-piece molded non-transparent water tank with top air filter, three-stage level control and UV sterilization

This series is ideal for high-precision laboratories including life science research, molecular biology, ICP-MS, HPLC and cell culture facilities.

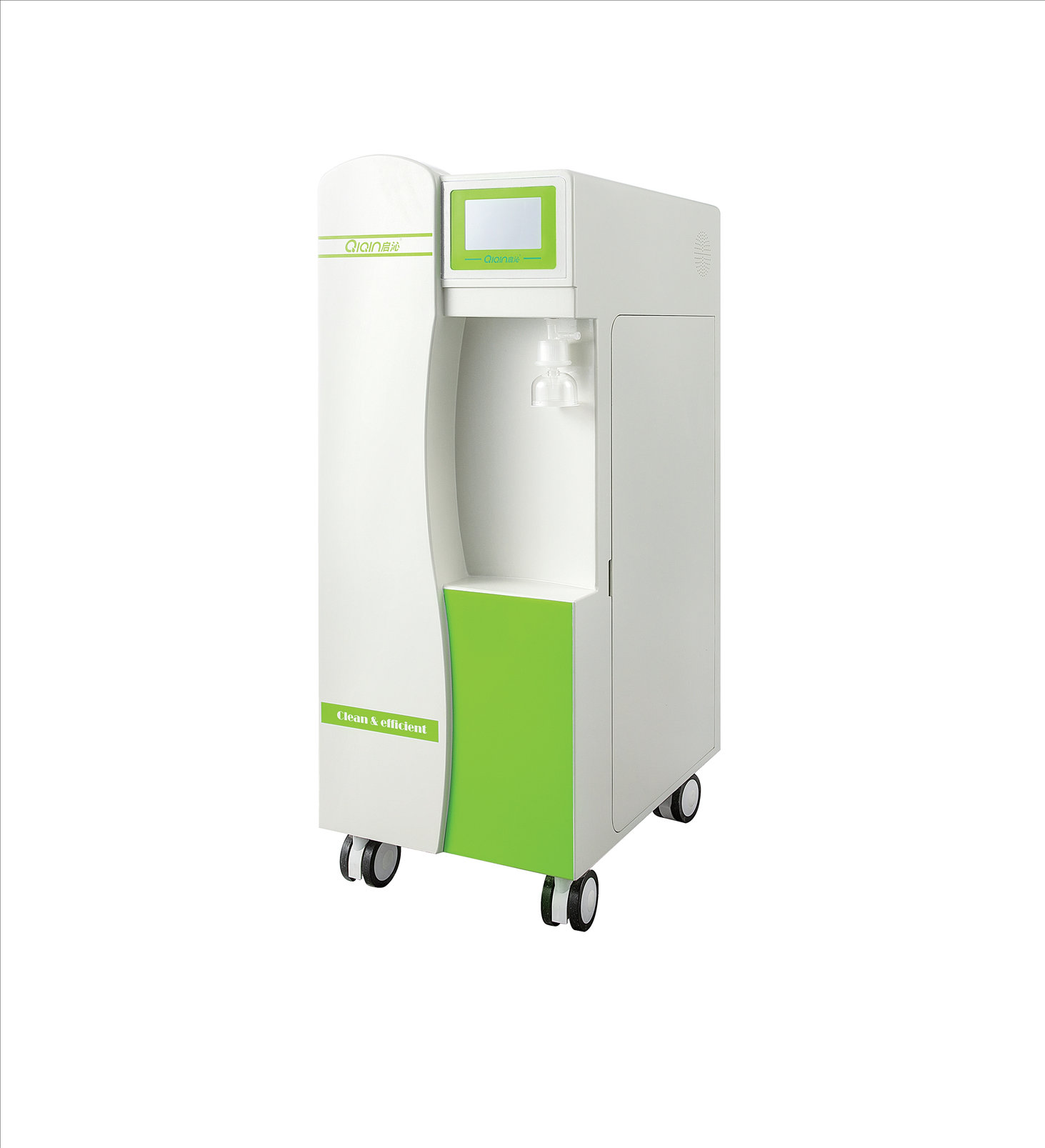

Q-STER-G Series: Double-Stage RO Ultrapure System for Complex Feed Water

The Q-STER-G series adopts a pretreatment + double-stage reverse osmosis configuration to produce Type III laboratory water, and delivers 18.25 MΩ·cm ultrapure water when combined with ultrapurification modules. Its robust process design adapts to various complex feed water conditions, making it a reliable choice for high-end laboratories.

Water production ranges from 10 L/H to 60 L/H.

Core advantages:

• ABS one-piece molded engineering plastic housing to prevent corrosion and rust
• 5-inch color touch screen with full water quality monitoring and 5-year data recording capability
• 3-channel online water quality monitoring with temperature, TOC and tank level detection
• Automatic RO anti-scaling flushing and controllable ultrapure water circulation system
• Two-level password protection and consumable life alert system
• Modular independent structure for easy maintenance and filter replacement, compliant with GLP standards
• Original DOW RO membranes and ultrapurification resins
• Dual-wavelength UV sterilization and imported 5000DUF ultrafiltration for endotoxin control
• Patented sterile water tank with UV sterilization to suppress bacterial growth

This series performs reliably in areas with variable tap water quality, supporting applications from routine analytical testing to high-precision life science research.

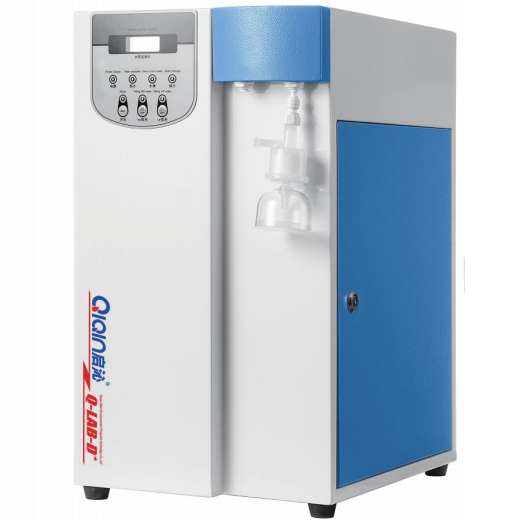

Q-LAB Series: Entry-Level Economical Ultrapure Water System

The Q-LAB series is an economical benchtop ultrapure water system designed for small and medium flow rate scenarios. Its refined modular design balances simplicity and cost-effectiveness, making it the best choice for budget-conscious routine laboratories.

Key features:

• Fully automatic operation with power-on self-test, water shortage/full protection, and low/over pressure protection
• Microcomputer control with touch buttons and real-time water quality display
• Plug-in integrated design for maintenance without special tools; equipped with imported terminal microfilter and UV lamp
• Low power consumption, low noise and strong anti-interference performance, with multiple configuration options
• Compliant with GB/T 6682-2008, ASTM, CAP, CLSI, EP and USP standards, with CE certification

It is suitable for routine physical and chemical laboratories, educational institutions and general testing scenarios that require stable Grade I/II water quality.

How to Select the Right Laboratory Water System

Choosing the optimal water purification solution depends on your facility scale, water quality requirements, daily consumption and compliance needs. Consider the following core factors:

1. Facility scale and water points: For facilities with 3+ laboratories or more than 5 water points, a central pure water system is more cost-effective for unified management. For single-laboratory use, a benchtop ultrapure system offers more flexibility.
2. Required water quality grade: For routine glassware washing and general chemistry, Grade III RO water is sufficient. For HPLC, ICP-MS, cell culture and molecular biology, Grade I ultrapure water with TOC and endotoxin control is required.
3. Daily water consumption: Match system production capacity to your peak daily water demand with appropriate redundancy. Central systems cover 200–2000 L/H, while benchtop systems cover 10–150 L/H.
4. Compliance requirements: For GLP, GMP or audited laboratories, select systems with data logging, audit trails and password protection such as the Q-STER series to support compliance verification.
5. Feed water conditions: For areas with poor or fluctuating tap water quality, the double-stage RO Q-STER-G or EDI-based Q-STER-E delivers more stable effluent quality.

Summary

QiQin’s full line of laboratory water purification systems covers all scenarios from small benchtop units to large-scale centralized water supply, with consistent compliance with global mainstream water quality standards. Whether you need an economical routine lab system or a high-end EDI ultrapure solution for life science research, there is a tailored configuration to match your requirements.

Explore the complete QiQin laboratory water purification product range, or contact our technical team today for a customized sizing recommendation and quotation.

Disclaimer

The technical parameters, performance descriptions and standard compliance statements provided in this article are based on standard product configurations for general reference only. Actual water quality performance and system capacity may vary depending on feed water conditions, operating environment and custom configurations. For detailed project specifications and tailored solutions, please consult our professional technical personnel.
