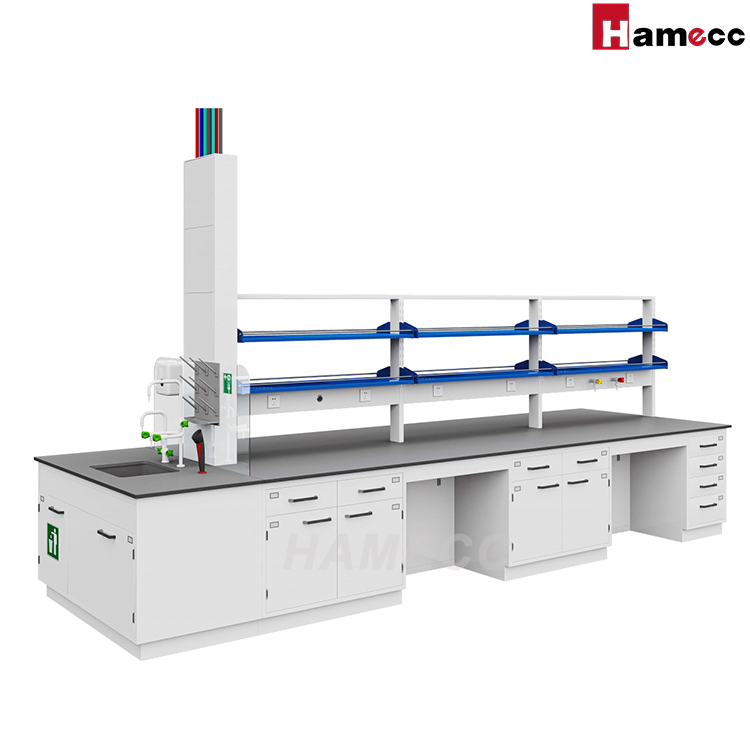

The Steel Laboratory Workbench System features a floor-mounted full steel structure designed for laboratories requiring a durable and stable workstation. Constructed from 1.2 mm high-quality cold-rolled steel with an SEFA 8M-2020 compliant epoxy resin powder coating, it integrates storage cabinets, utility modules, and customizable laboratory accessories to support various laboratory layouts and applications.
Company Name :
HAMECC (shanghai) lab solutions co.,ltdBrand :
HAMECCPowder supply :
AC220V±10%,50/ 60Hz With flushing system insideWorktop :
PP materialMaterials :
Made of porc elain white PP, thickness of 8mm, acid and alkali, alkali corrosionDimension :
1200/1500/18 00mm(L)*1100mm(D)*2300mm(H)
The Steel Laboratory Workbench System adopts a floor-mounted structure designed for laboratories with specific layout requirements. The system consists of a worktop and a floor-mounted base cabinet that are permanently connected through connectors to provide a compact and stable laboratory workstation.
Its full steel construction offers strong load-bearing capacity, durability, and structural stability. The lower cabinet provides generous storage space with adjustable shelves, while the rear function box allows concealed installation of power and gas utilities to maximize usable workspace and improve laboratory organization.
The workbench is permanently fixed through connectors, providing a stable laboratory workstation for long-term use.
Manufactured from 1.2 mm high-quality cold-rolled steel plate, offering durability and load-bearing performance.
The epoxy resin powder coating provides:
The rear function box enables hidden routing of electrical and gas services, keeping the work surface organized.
The system supports integration with laboratory equipment including:
The functional column module allows laboratory utilities including water, electricity, gas (non-flammable and non-explosive gases), and network connections to be transferred from the main pipeline to terminal workstations while supporting bidirectional fast docking for future laboratory layout adjustments.
| Item | Specification |
|---|---|
| Product Type | Steel Laboratory Workbench System |
| Structure | Full Steel Floor-Mounted |
| Dimensions | L × D750/1500 × H850 mm |
| Steel Thickness | 1.2 mm |
| Material | High-quality Cold-Rolled Steel Plate |
| Coating | Epoxy Resin Powder Coating |
| Standard | SEFA 8M-2020 |
| Item | Configuration |
|---|---|
| Electrical Supply | Power outlets on the exterior in the service panel |
| Water & Gas Supply | Optional air cock, sink, water cock |
| Cabinet Options | Standard steel cabinet, safety cabinet, acid cabinet, waste liquid collection cabinet, etc. |
| PVC Skirting Line | Available according to customer demand |
