Company Name :
YAN JIALONG MECHANICAL TECHNOLOGY(JIANGSU)CO.,LTD.Brand :
Yanjialong TechnologyYanjialong Machinery Technology (Jiangsu) Co., Ltd. is a service provider focusing on evaporation (concentration) crystallization equipment. Adhering to the beautiful vision of "recycling every drop of water", we have always focused on the research and development, design and manufacturing of evaporator technology products, and have an experienced technical team.
Yanjialong is currently a high-tech evaporator enterprise with a full range of pilot equipment for multi-effect evaporators, falling film evaporator pilot equipment, and MVR evaporator pilot equipment in China. At present, the company has a relatively large evaporator R&D and production base, with its own production workshop and laboratory test equipment, which can conduct material analysis for customers in a timely manner.
Yanjialong Company has more than 10 years of engineering experience and performance in testing, design, processing, installation, commissioning and after-sales service, with a technical team of more than 30 people. The company has obtained a number of high-tech enterprise certificates through the ISO9001 quality certification system, and has a number of patents for various inventions and utility models, many of which have reached the domestic forefront level, the company is committed to making the water clearer, the sky bluer, and the environment more beautiful.
MVR Evaporator,
Multi-effect Evaporator,
Bring Drying Machine, Single-effect Evaporator,
Film Scraper Evaporator

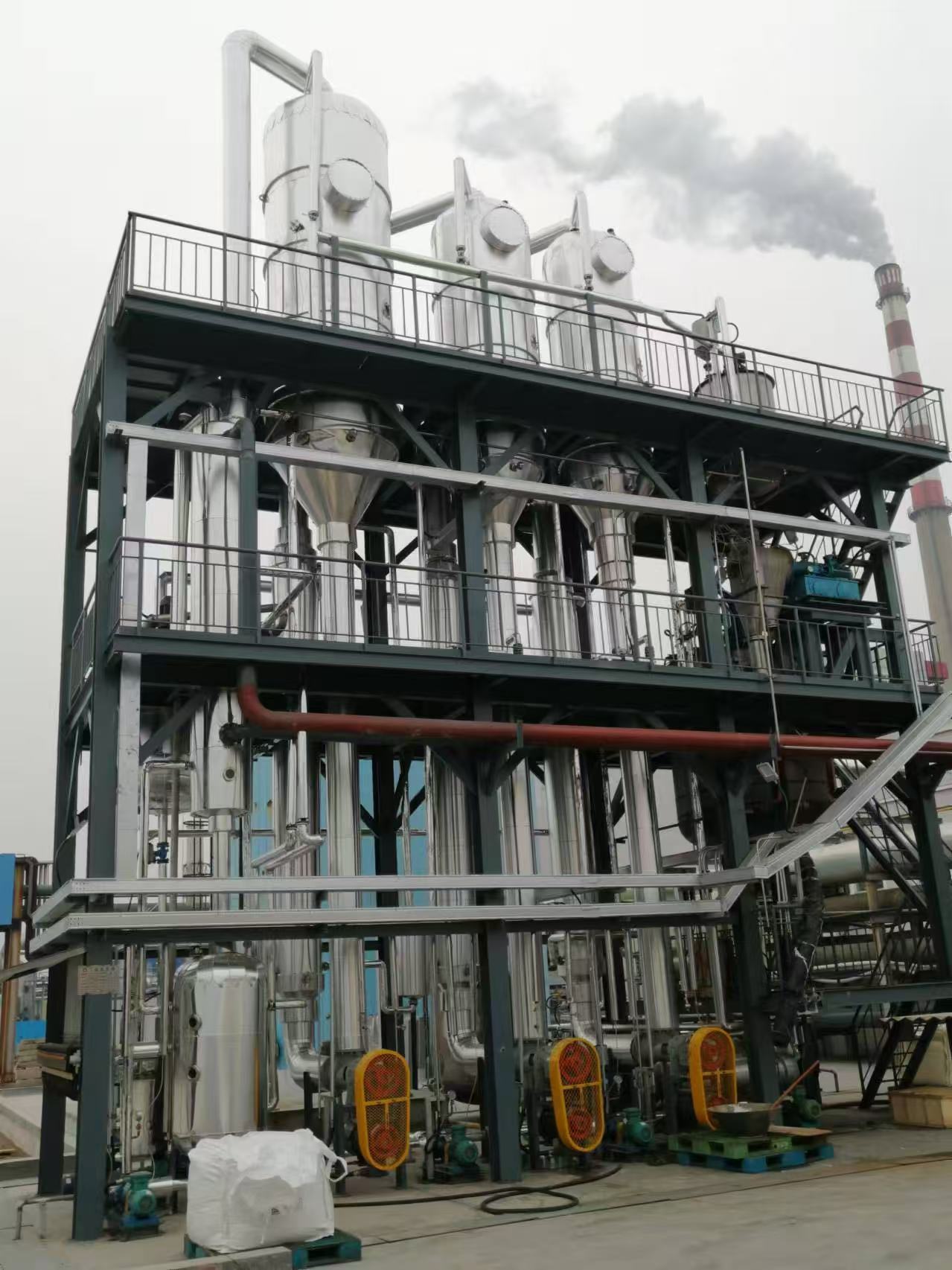

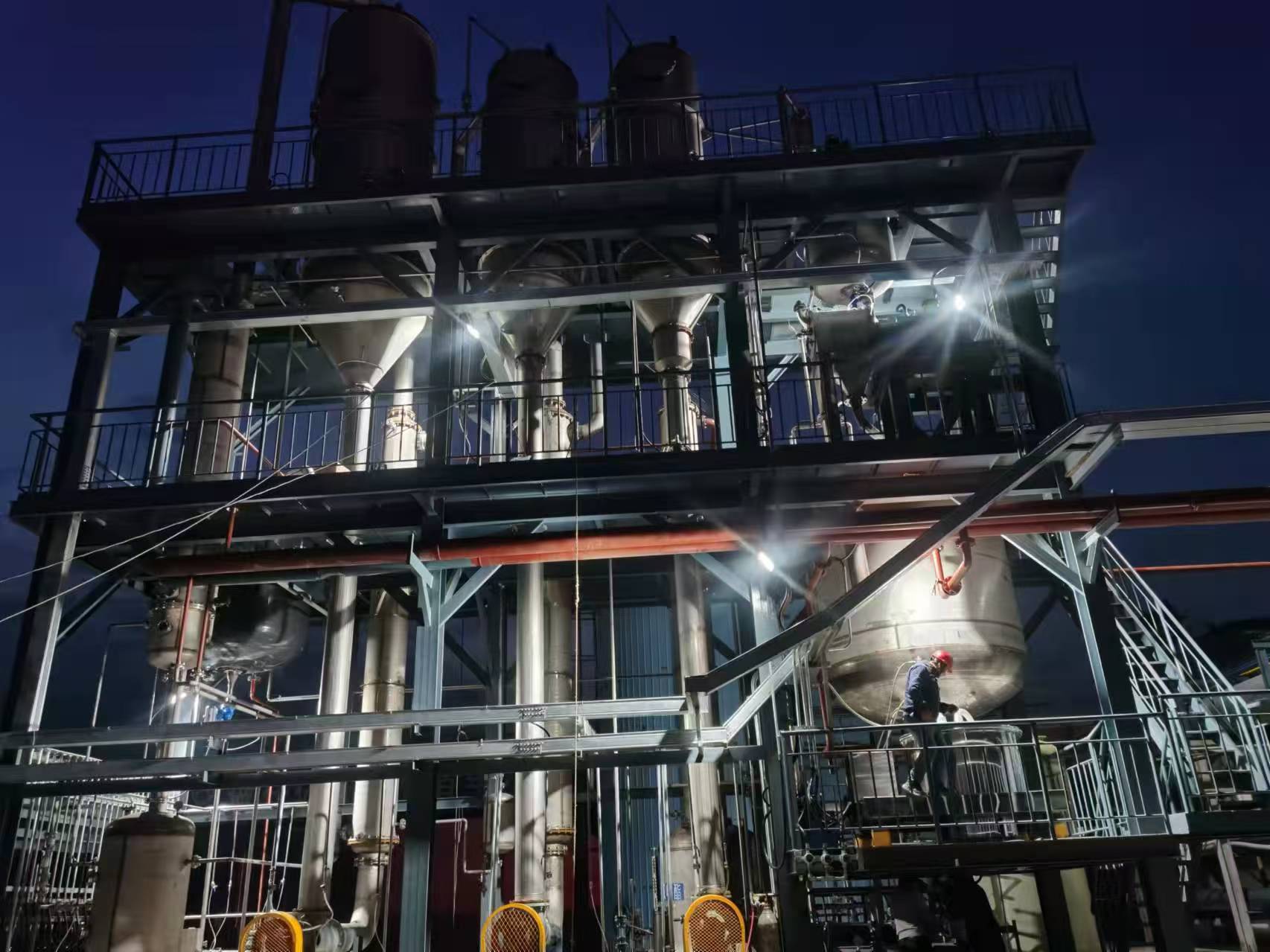

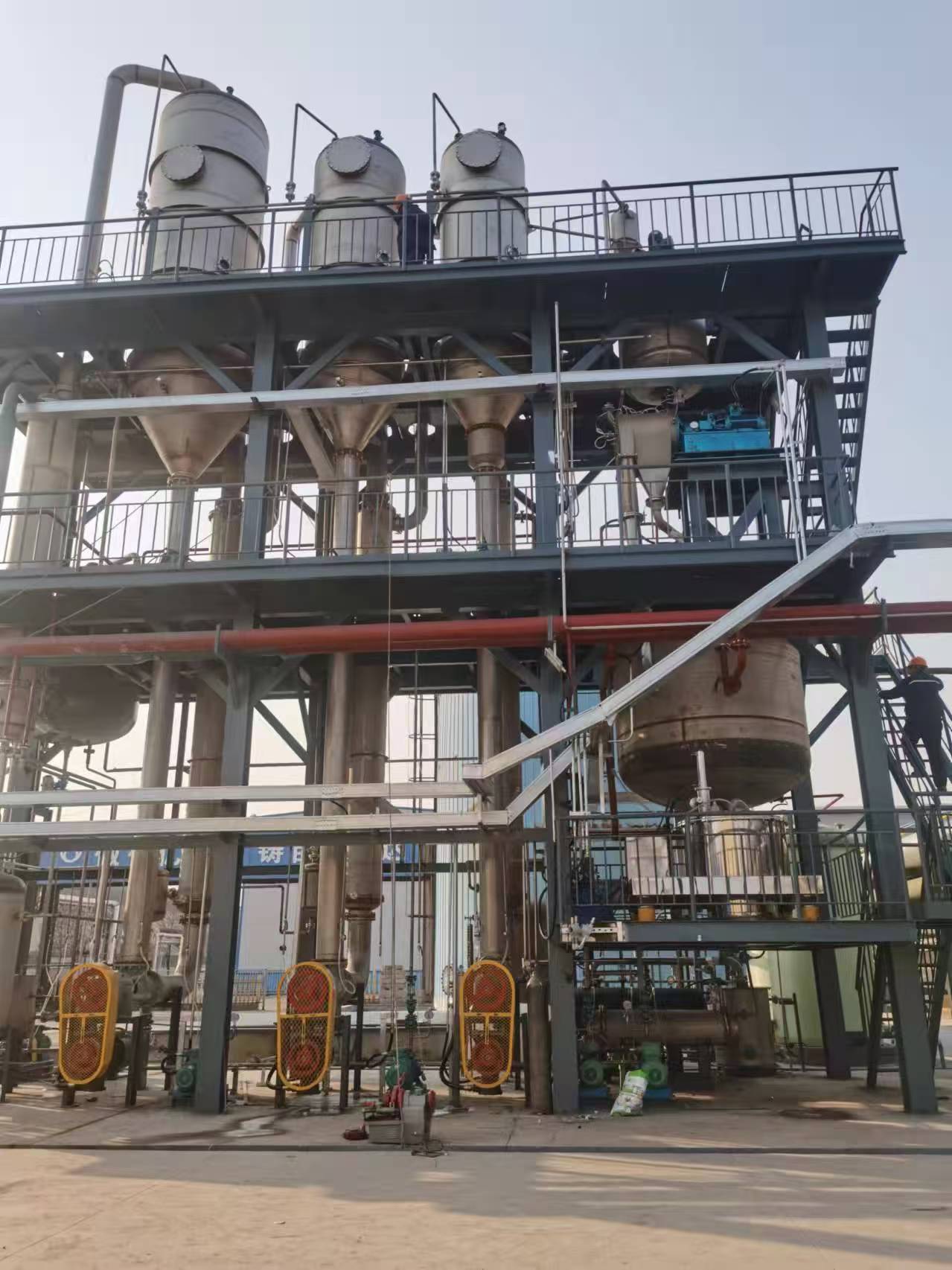

Multi-effect counterflow, downflow, falling film evaporator series equipment is a special equipment for evaporation and concentration of corn pulp, fermentation sugar juice industry, juice, beverage industry, milk, wine tank filtrate, pharmaceutical industry, fermentation liquid, high-concentration organic or chemical wastewater. It has the advantages of energy saving, short heating time, large evaporation, concentration and concentration ratio of materials with high viscosity, and can also obtain high-quality deionized water to meet the needs of industrial boiler water. It can also be combined into double-effect, three-effect, four-effect and five-effect evaporation systems. It can also use the waste steam on the top of the tube bundle or disc dryer and other low calorific value heat sources (such as condensate steam) as the evaporator heat source to become a waste heat evaporator, which can greatly reduce the amount of raw steam and achieve a great energy-saving effect. When the waste heat steam is fully supplied, the steam can be completely eliminated and significant economic benefits can be obtained.
Principle of Operation
The materials are evenly distributed into each evaporator tube by the distributor. Under the influence of gravity and secondary steam generated by self-evaporation, the materials form a spiral film that flows downwards. During this process, the thin film of materials exchanges heat with the steam on the outer wall of the tubes, leading to the evaporation of moisture in the materials. A stable temperature difference and heat exchange area result in a consistent evaporation rate of moisture. The secondary steam generated from the evaporated moisture is reused multiple times, maximizing the utilization of thermal energy, reducing steam consumption, and achieving the design principle for multiple evaporation.
Performance characteristics
