Parameter
|
Tank (Internal)
|
Jacket (External)
|
|
Design Pressure (MPa)
|
0.4
|
0.6
|
|
Design Temperature (℃)
|
-19/200
|
-19/200
|
Company Name :
Linyi Haixin Chemical Equipment Co., Ltd.Brand :
haixinlanLinyi Haixin Chemical Equipment Co., Ltd. is located in the Yimeng Revolutionary Martyrs' Area — Linyi, Shandong Province, specifically in the Luozhuang Economic Development Zone. Established in 2008, it covers an area of 120,000 square meters. The company primarily produces and operates 50L-100,000L glass-lined reaction kettles, glass-lined storage tanks, glass-lined mixers, pipelines, tower sections, and non-standard pressure vessels. It is recognized as a high-tech enterprise and a provincially-level specialized and innovative enterprise, possessing numerous provincial and municipal R&D platforms and independently developing over 40 patents. The company is qualified in the design and manufacture of Level D pressure vessels and glass-lined pressure vessels. It has a dedicated workforce, a scientifically sound management system, and consistently adopts research and innovation as well as improving customer satisfaction as its operational philosophy, continuously enhancing the service experience for users.

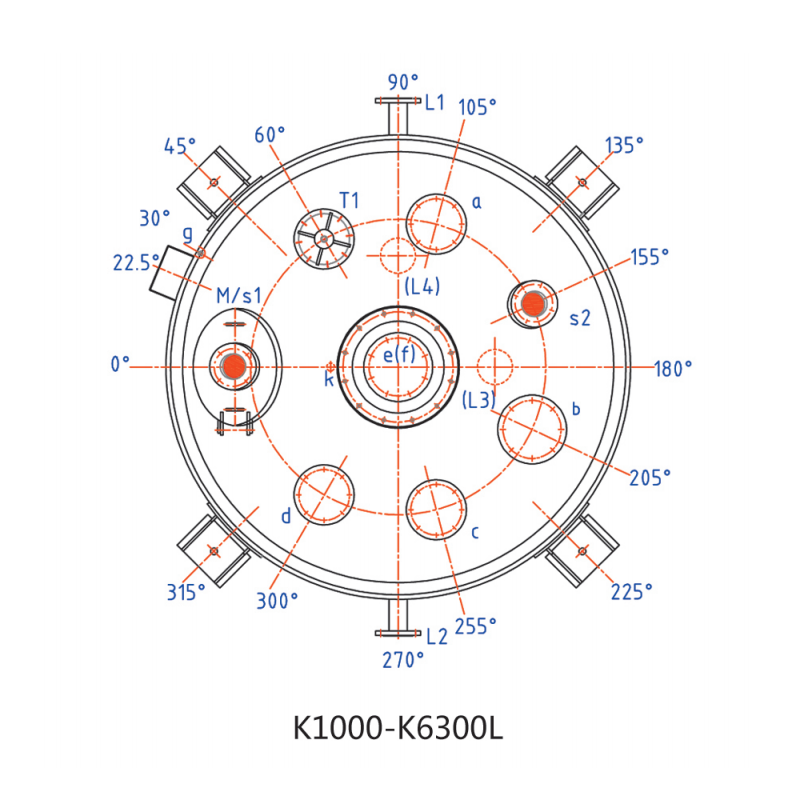

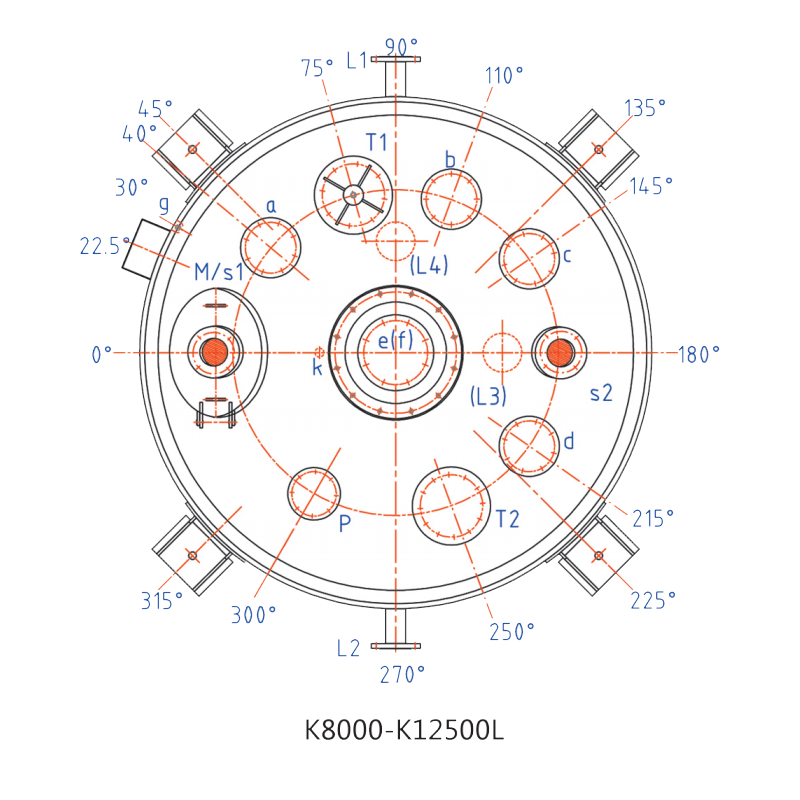

①Open（Closed） glass lined reaction tank;
②Open（Closed） glass lined tank；
③Horizontal glass lined tank
|
Symbol
|
Purpose
|
|
M
|
Manhole
|
|
a,b,c,d,p,h
|
Spare Ports
|
|
e
|
Stirring Port
|
|
f
|
Discharge Port
|
|
T1,T2
|
Thermometer Ports
|
|
s1,S2
|
Sight Glass Ports
|
|
l1,L2,L3,L4
|
Jacket Inlet/Outlet
|
|
n
|
Vent
|
|
k
|
Drain Port
|
|
Size
|
K1000
|
K2000
|
K3000
|
K5000
|
K6300
|
K8000
|
K10000
|
K12500
|
|
|
Full volume(㎡)
|
1.57
|
2.6
|
4.2
|
6.4
|
7.45
|
10
|
12.4
|
14
|
|
|
Jacket volume(㎡)
|
0.22
|
0.47
|
0.6
|
0.8
|
0.95
|
1.55
|
1.8
|
2
|
|
|
Heat transfer area(㎡)
|
4.53
|
7.2
|
9.3
|
13.4
|
15.9
|
18.8
|
21.2
|
24.3
|
|
|
Internal surface area(㎡)
|
7.3
|
10.3
|
13.8
|
18.7
|
21.1
|
25.3
|
31.66
|
35.66
|
|
|
Motor power（KW）
|
4
|
4
|
5.5
|
7.5
|
11
|
11
|
15
|
15
|
|
|
Machine reference weight（Kg）
|
1670
|
2350
|
3470
|
4930
|
5620
|
7580
|
8530
|
9660
|
|
|
Main size
|
D1
|
1200
|
1300
|
1600
|
1750
|
1750
|
2000
|
2200
|
2200
|
|
D2
|
1300
|
1450
|
1750
|
1900
|
1900
|
2400
|
2400
|
2400
|
|
|
D3
|
1489
|
1639
|
1980
|
2152
|
2152
|
2708
|
2708
|
2708
|
|
|
D4
|
400
|
400
|
455
|
455
|
455
|
510
|
510
|
510
|
|
|
D5
|
840
|
910
|
1220
|
1220
|
1220
|
1540
|
1540
|
1540
|
|
|
D6
|
30
|
30
|
30
|
30
|
30
|
36
|
36
|
36
|
|
|
H1
|
3210
|
3800
|
4090
|
4970
|
5570
|
5780
|
5940
|
6380
|
|
|
H2
|
1315
|
1315
|
1400
|
1706
|
1875
|
1895
|
1935
|
1935
|
|
|
H3
|
485
|
510
|
595
|
632.5
|
632.5
|
705
|
770
|
770
|
|
|
H4
|
500
|
650
|
700
|
700
|
700
|
850
|
850
|
850
|
|
|
H5
|
1200
|
1750
|
1835
|
2423
|
2876
|
2935
|
3000
|
3440
|
|
|
H6
|
300
|
310
|
330
|
330
|
330
|
400
|
400
|
400
|
|
|
d0
|
80*8
|
80*8
|
95*8
|
95*10
|
95*10
|
110*12
|
110*12
|
110*12
|
|
|
d1
|
1080
|
1180
|
1440
|
1580
|
1580
|
1700
|
1700
|
1800
|
|
|
B1
|
|
510
|
510
|
510
|
510
|
510
|
550
|
550
|
|
|
B2
|
400
|
400
|
400
|
400
|
400
|
400
|
470
|
470
|
|
|
Nozzle size table
|
M
|
400*300
|
400*300
|
400*300
|
400*300
|
400*300
|
400*300
|
400*300
|
400*300
|
|
a
|
100
|
100
|
100
|
125
|
125
|
150
|
150
|
150
|
|
|
b
|
100
|
125
|
125
|
150
|
150
|
150
|
150
|
150
|
|
|
c
|
100
|
100
|
100
|
125
|
125
|
150
|
150
|
150
|
|
|
d
|
100
|
125
|
125
|
125
|
125
|
150
|
150
|
150
|
|
|
p
|
|
|
|
|
|
125
|
125
|
125
|
|
|
T1
|
100
|
100
|
100
|
125
|
125
|
200
|
200
|
200
|
|
|
T2
|
|
|
|
|
|
|
200
|
200
|
|
|
e
|
125
|
125
|
150
|
150
|
150
|
200
|
200
|
200
|
|
|
f
|
100
|
100
|
125
|
125
|
125
|
125
|
150
|
150
|
|
|
s1-s2
|
100
|
125
|
125
|
125
|
125
|
125
|
125
|
125
|
|
|
L1-L4
|
32
|
40
|
50
|
65
|
65
|
65
|
80
|
80
|
|
|
g
|
G1/2
|
G1/2
|
G1/2
|
G1/2
|
G1/2
|
G3/4
|
G3/4
|
G3/4
|
|
|
k
|
G1/2
|
G1/2
|
G1/2
|
G1/2
|
G1/2
|
G1/2
|
G1/2
|
G1/2
|
|
