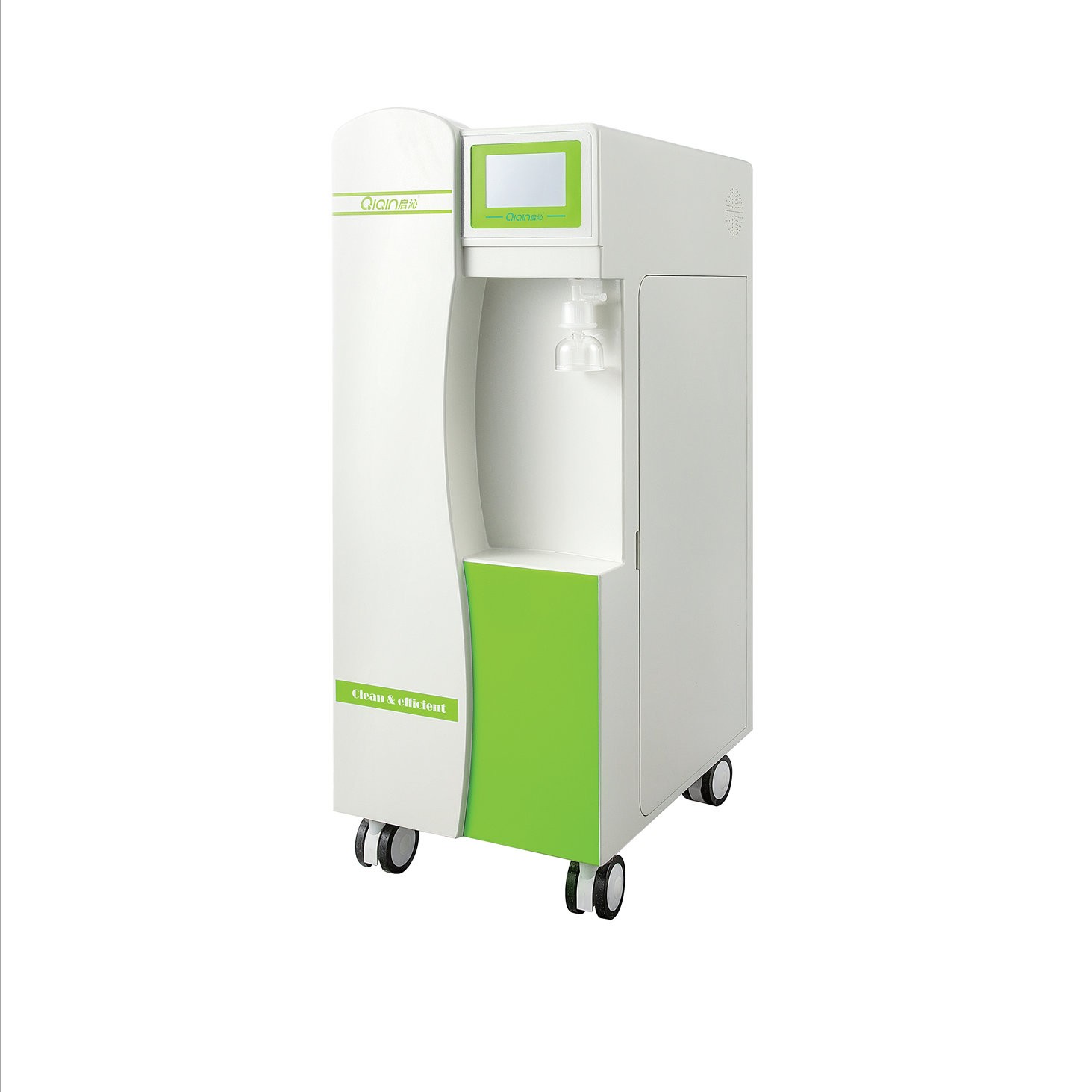

Ultrapure Water System Q-STER-E Series (high-end type)

Ultrapure Water System Q-STER-E Series

264

  • Company Name :

    Hunan Qiqin Environmental Protection Technology Co., Ltd.

  • Brand :

    QiQin

  • Data storage :

    data can be stored and printed

  • Flushing and circulation :

    automatic flushing and internal circulation

  • Alarm :

    system failure and consumables replacement reminder and alarm

  • Water quality testing :

    online real-time monitoring and display

  • Working mode :

    automatic operation
Product Tags : laboratory type I water ultra pure water machine ultrapure water purification system price ultrapure water specifications ultrapure water purifier Ultrapure Water System Q-STER-E Series (high-end type)
Inquire Now
Share To :
Product categories

New Products

More

Technical Articles

More

Hunan Qiqin Environmental Protection Technology Co., Ltd. is located in the historical and cultural city of Changsha, Hunan province of China.

Qiqin is a national high-tech enterprise specialised in research, production, sales, and after-sales service of purified water systems, ultrapure water systems, wastewater treatment systems for laboratories, hospitals and biopharmaceuticals.

As a professional manufacturer of water treatment equipment, the excellent performance of our products is only one of our commitments to customers. We pursue not only technical excellence, but also high standards in service, to provide customers with excellent experience.

Qiqin is not only a practitioner of environmental sustainable development, but also an active promoter of this concept. Based on innovative technologies, we constantly explore the path of development in water treatment industry, achieving a win-win for both environmental protection and the economy.

1. Ultrapure Water System for Laboratory

2. Pure Water System for Hospital

3. Purified Water System for Biopharmaceuticals

3. Ultrapure Water System for Semiconductor Industry

4. Waste Water Treatment System for laboratory and hospital

More Information

The system adopts advanced EDl technology and modules, which can obtain stable type l water with resistiviy 210M0.cm (25'c) withoutchemical regeneration. t can save the cost of use and reduce wastewater discharge, and can obtain ultrapure water with resistiviy 18.25MQ.cm (25'℃) by combining with the post-ultra-purification module.Water production: 10LH - 150L/H, users can choose the desired model according to their water needs.



Product features

  • The QlQlN unique EDl module technology is adopted, the water quality is stable, and the durabilityis strong.
  • ABS integrated molding engineering plastics are used to eliminate corrosion and rust.
  • The 5-inch large touch color screen operation interfa ce displays the real-time operation status andwater quality is fully monitored. it has a USB interface, which supports data copying, downloading,printing, storage. lt automatically record water quality data for five years to help laboratory data statistics.
  • Online 3-channel water quality monitoring, realtime monitoring of raw water/RO water, ROwater/EDl pure water, UP ultrapure water quality, and can also detect water temperature, TOCvalue, watertank level and other data.
  • Fully automatic RO membrane anti-scale rinsing procedure to prolong the service life of RO membrane.
  • The ultrapure water circulation system can be started and shut down freely, maintaining a low levelof bacterial contamination in the system.
  • Two-levels passwords to factory and user, system settings are protected by passwords to preventunauthorized changes.
  • The lifetime of pretreatment, RO membrane, UV lamp and ultra-purification column can be setshowing the used and remaining time of consumables, and automatic reminders when consum-ables are due to be replaced to avoid water quality degradation.
  • Metered water intake function (timing: 1-60 liters)
  • Pretreatment, RO membrane, and ultra-purification components adopt a modular independentstructure, which makes system maintenance and flter element replacement more convenient.and conforms to GLP specifcations. Using DOW original imported RO membrane and DOwultra-purification resin, the combin ation of long life of RO membrane and high-quality water qualityis realized.
  • Dual-wavelength (185nm&254nm) UV lamp assembly(imported lamp) can effectively sterilize, reduce TOC, andenhance the scope of application of the system.
  • 5000DUF ultrafiltration assembly (original imported),effectively remove pyrogen (endotoxin), can be used forprecision cell culture and IVF.
  • (0.45+0.1)um imported PES polyethersulfone composite membraneterminal sterilization flter to ensure water quality sterility.
  • QlQlN water tank is integrally molded with sanitary non-transparentplastic, top air filter, three-stage liquid level control and ultravioletsterilization of the water tank to strictly control growth of bacteria inthe water tank.
