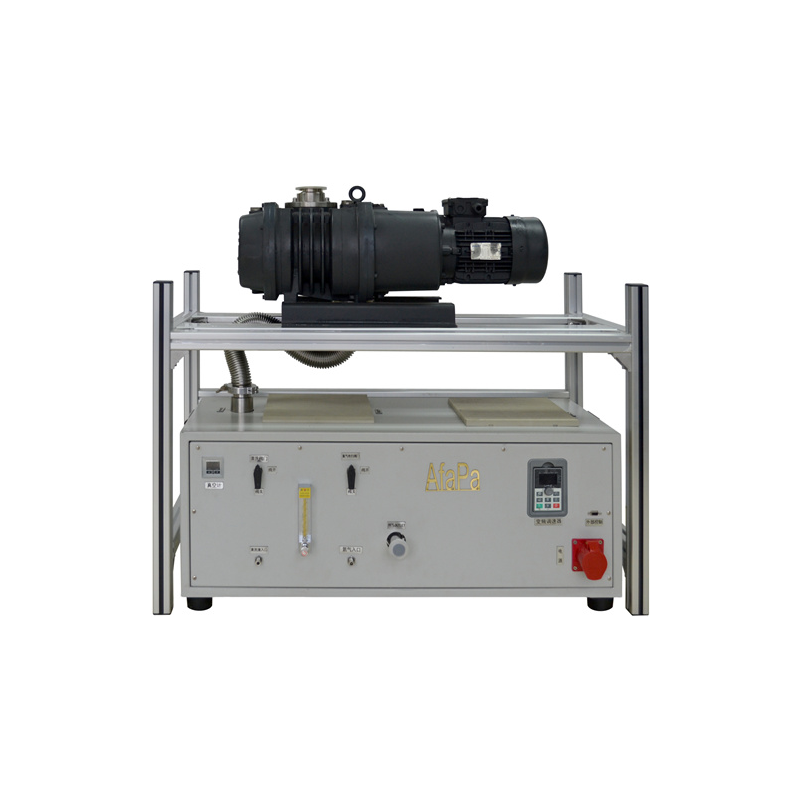

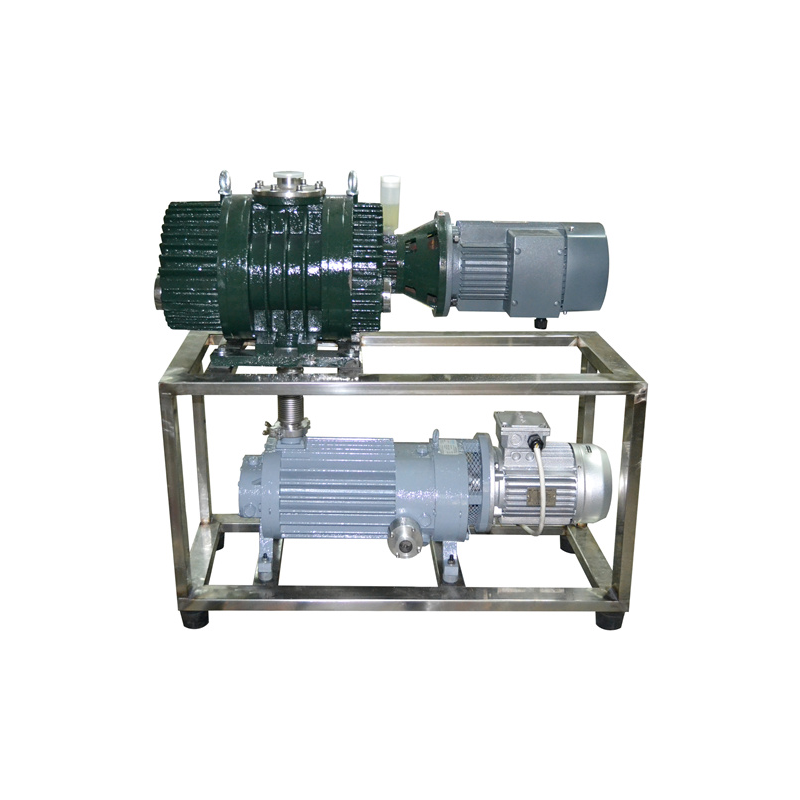

RSS Roots Screw Vacuum System

RSS screw vacuum system is high vacuum system, which consist of RV roots vacuum pump as main pump and DPSB screw vacuum pump as backing pump in series, take the advantages of high vacuum, compact structure, convenient for operate. It is suitable to pumping all kind gas and solvent vapor, and weak corrosive gas. Widely used in big pumping speed and all kinds of high vacuum systems, such as scientific experiments, chemical and pharmaceutical, vacuum smelting, vacuum coating, semiconductor, electrical equipment and so on.

Share To :

Features

· First and second stage connect directly, compact structure.

· Air cooled, no need water to cooled.

· Manual and auto can choose.

· Both are direct-coupled vacuum pumps.

· High vacuum.

· Convenient to maintain, low noise.

· Stable and dependable.

 Technical Specifications



Model
Pumping Speed
(L/S)
Ultimate Vacuum
(Pa)
Main Pump
Backing Pump
RSS30-20
30
0.5
ZJB30
DPS020
RSS30-50
30
0.5
ZJB30
DPS050
RSS30-80
30
0.5
ZJB30
DPS080
RSS70-20
70
0.5
ZJB70
DPS020
RSS70-50
70
0.5
ZJB70
DPS050
RSS70-80
70
0.5
ZJB70
DPS080
RSS150-80
150
0.5
ZJB150
DPS080
