Shanghai AFAPA Vacuum Equipment Co., ltd. MVS Micro-Vacuum System MVS Micro- Vacuum System

MVS Micro- Vacuum System

954

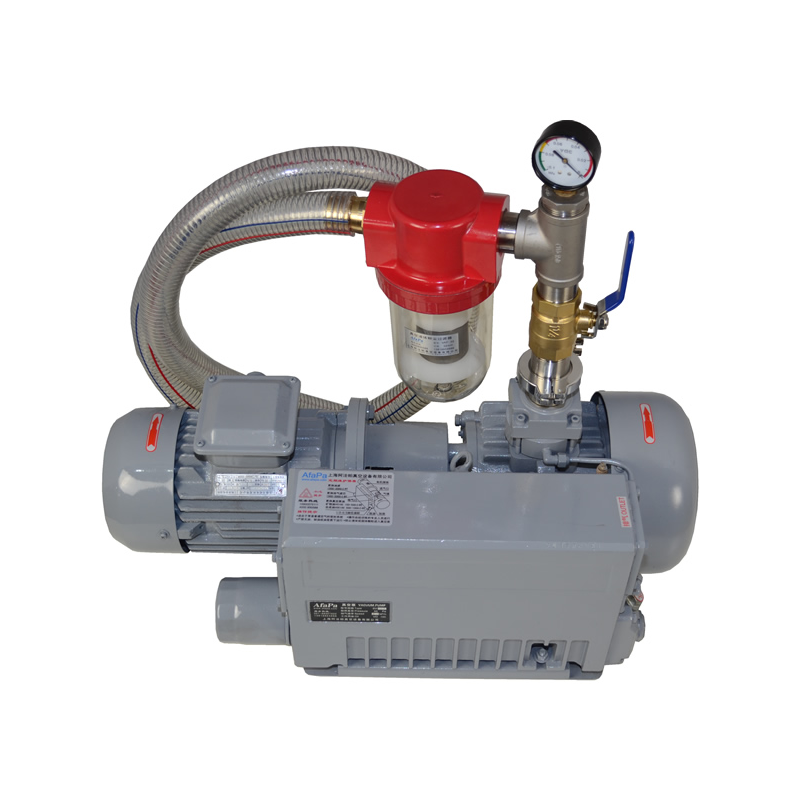

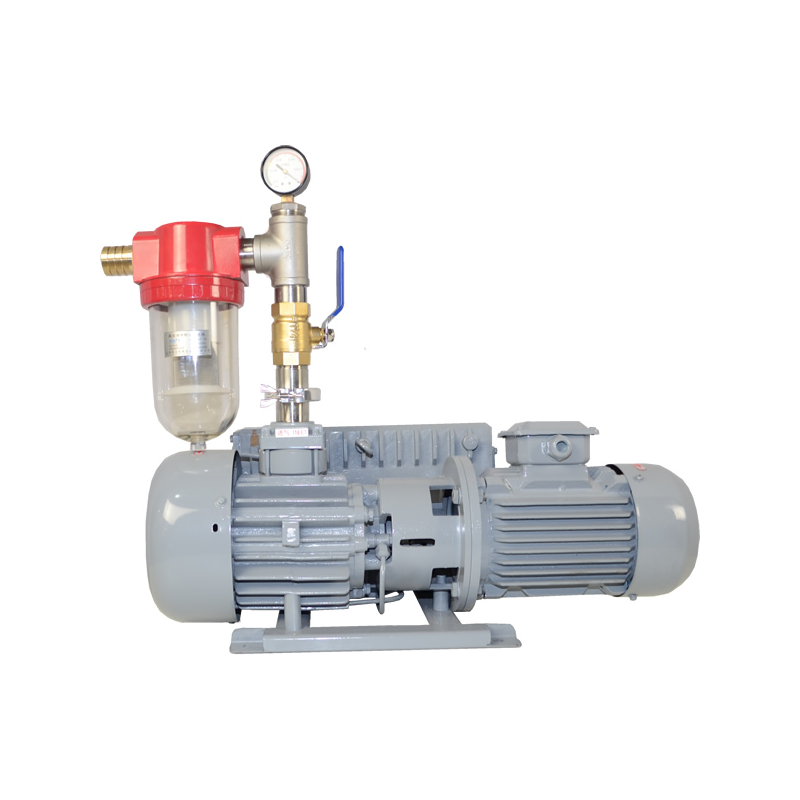

MVS micro-vacuum system is all-in-one vacuum equipment, users connect power wire and vacuum pipeline, satisfy with one-stop vacuum needs.

Inquire Now

Share To :

Product categories

Brand Classification

New Products

Model	MVS-10	MVS-20	MVS-25	MVS-40	MVS-63	MVS-100
Vacuum Pump	SV-010	SV-020	SV-025	SV-040	SV-063	SV-100
Pumping Speed (M(3)/h)	10	20	25	40	63	100
Vacuum Range (MPa)	0~-0.1	0~-0.1	0~-0.1	0~-0.1	0~-0.1	0~-0.1
Motor Power（Kw/Hp）	0.35/0.48	0.75/1.0	0.75/1.0	1.1/1.5	1.5/2.0	2.2/3.0
Vacuum Dust Filter	VAF-15	VAF-15	VAF-15	VAF-32	VAF-32	VAF-32
Ball Valve	1/2’	1/2’	1/2’	1 1/4’	1 1/4’	1 1/4’
Power(V)	220/380	220/380	220/380	380	380	380
Inlet Hole Size	1/2’	1/2’	1/2’	1 1/4’’	1 1/4’’	1 1/4’’
