RRS Roots Rotary Vane Vacuum System - ≤10Pa High Vacuum, Air-Cooled, Compact for Vacuum Smelting & Coating
RRS roots rotary vane vacuum system delivers ≤10Pa high vacuum with air-cooled, compact design. Features direct coupling, filter protection, and automatic/manual control. Ideal for vacuum smelting, coating, impregnation, and transformer applications. Pumping speeds from 30 to 600 L/S.
Company Name :
Shanghai AFAPA Vacuum Equipment Co., ltd.Brand :
AFAPA
Vacuum Pump
Vacuum System/Station
Vacuum Accessories

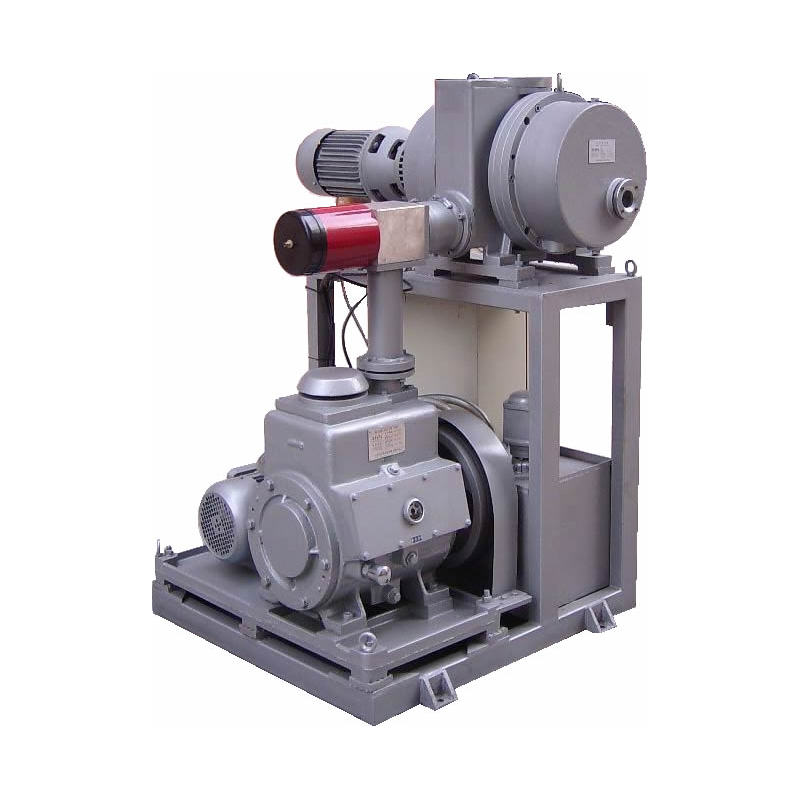

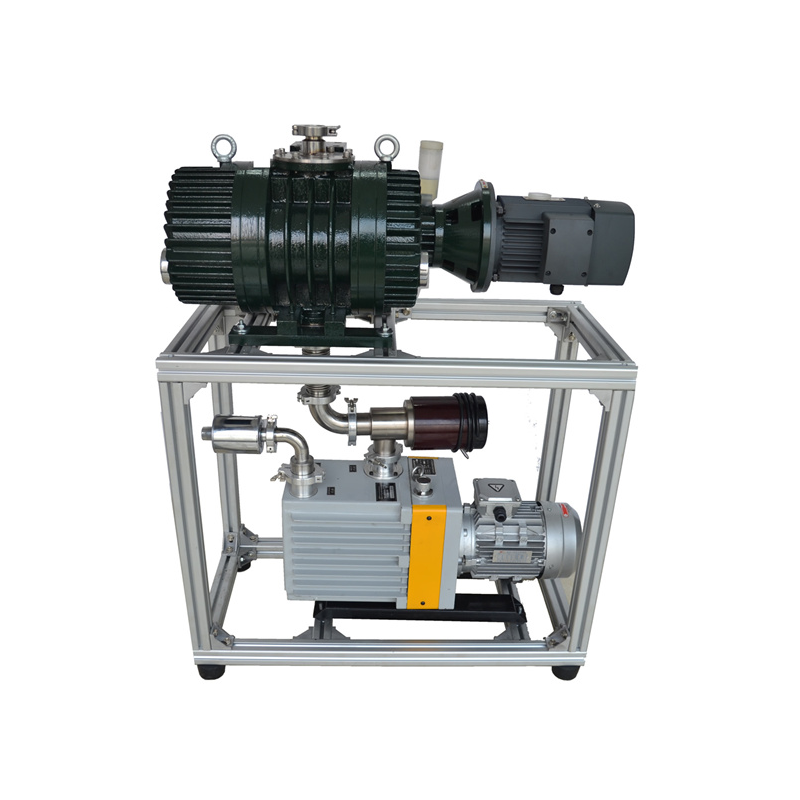

RRS roots-vane vacuum system is high vacuum system, which consist of RV roots vacuum pump as main pump and SV single stage rotary vane vacuum pump as backing pump in series, it take the advantages of high vacuum, compact structure, convenient for operate. Suitable for pumping common gas and condensable & non-corrosive gas. Widely used in big pumping speed and all kinds of high vacuum systems. Such as vacuum smelting, power capacitor, transformer, vacuum impregnation, vacuum coating and so on.
Features
· First and second stage connect directly, compact structure.
· Air cooled, no need water to cooled.
· Both are direct-coupled vacuum pump.
· Manual and auto can choose.
· High vacuum.
· Equipping with filter device, protect vacuum pumps.
Technical Specification
|
Model
|
Pumping Speed
(L/S)
|
Ultimate Vacuum
(Pa)
|
Main Pump
|
Backing Pump
|
|
RRS-30-40
|
≥30
|
≤10
|
ZJ-30
|
SV-40
|
|
RRS-70-63
|
≥70
|
≤10
|
ZJ-70
|
SV-63
|
|
RRS-150-100
|
≥150
|
≤10
|
ZJ-150
|
SV-100
|
|
RRS-150-160
|
≥150
|
≤10
|
ZJ-150
|
SV-160
|
|
RRS-300-250
|
≥300
|
≤10
|
ZJ-300
|
SV-250
|
|
RRS-300-300
|
≥300
|
≤10
|
ZJ-300
|
SV-300
|
|
RRS-600-250
|
≥600
|
≤10
|
ZJ-600
|
SV-250
|
|
RRS-600-300
|
≥600
|
≤10
|
ZJ-600
|
SV-300
|
