POCKET FILTER

BASIC PARAMETERS

• Efficiency: G3, G4, M5, M6, F7, F8, F9
• Frame: Double-layer U-Shaped aluminum alloy / Galvanized iron sheet (GI)
• Frame Thickness Options: 20mm / 21mm / 26mm / 47mm
• Filter Material: synthetic fiber
• Number of Pocket: 3P-12P

PRODUCT FEATURES

• Synthetic Fiber Bag Filter: Robust metal frame, High-quality filter media; seamless bag structure; high dust capacity; low resistance
• Fiberglass Bag Filter: Durable fiberglass material, riveted structure, long lifespan
• V-Shaped Low Pressure Drop Filter: Minimal air resistance, no-baffle design, melt-blown media for turbulence reduction, flange or flangeless options, polypropylene frames allow for incineration, high dust capacity and low air resistance
• Low Pressure Drop Filter: Uniform non-woven fiber media, high efficiency particulate removal, resistant to acids and alkalis

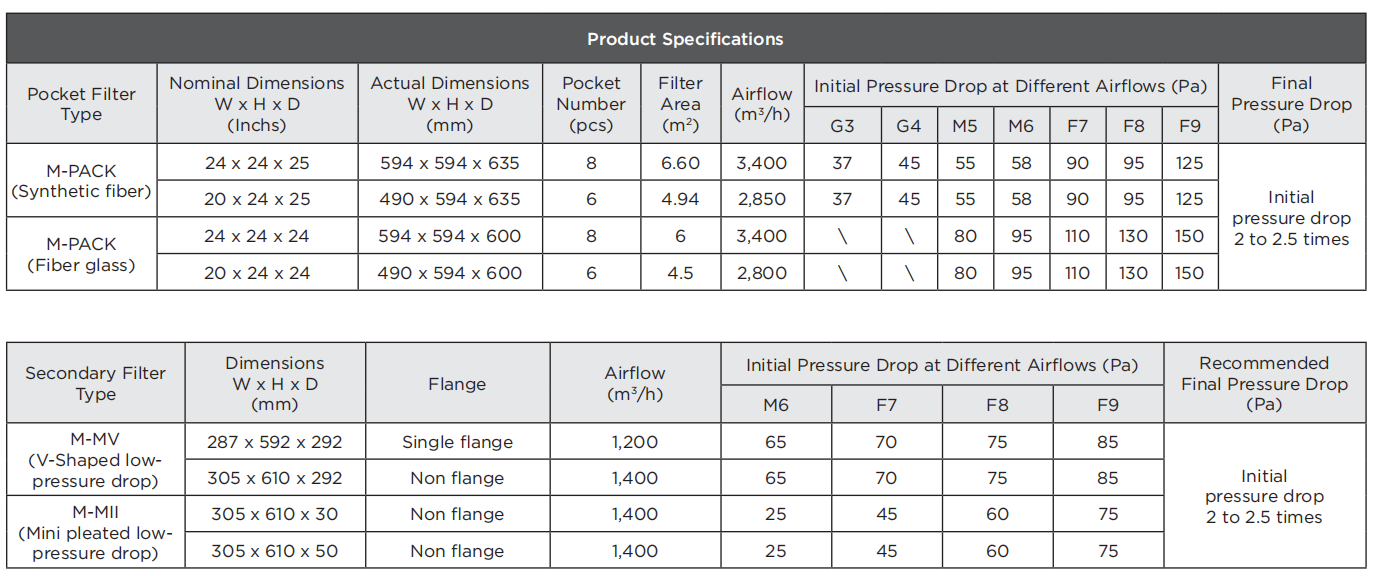

Product Specifications

Remark

1. M-MV (V-shaped, low-pressure drop) and M-MII (baffle-free, low-pressure drop) filters can undergo argenzil sterilization.
2. V-shaped or baffle-free low-pressure drop filters can achieve sub-high efficiency.
