A Professional, Practical, and Comprehensive Troubleshooting Guide for Industrial Evaporation Systems

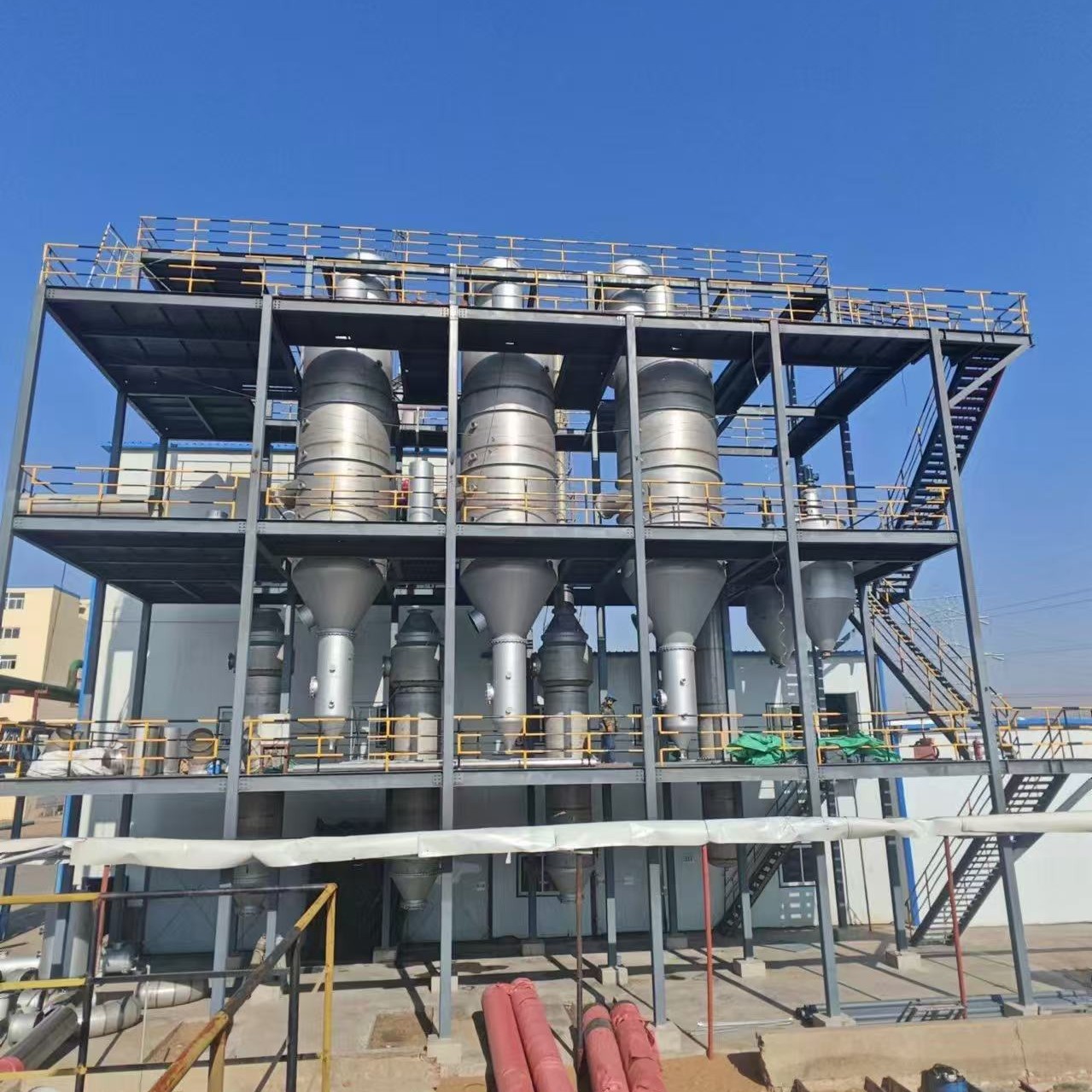

Industrial evaporators—whether used for wastewater concentration, crystallization, MVR evaporation, or multi-effect evaporation—operate under high temperature, negative pressure, and long-duty cycles.

This makes them susceptible to a series of predictable and recurring faults.





This guide compiles the most common evaporator problems, their typical symptoms, engineering causes, and step-by-step troubleshooting methods used by experienced process engineers and maintenance teams.



Q1: The evaporator’s heat transfer efficiency drops sharply. What are the causes? How to troubleshoot it?



Typical Symptoms



• Significant reduction in evaporation rate
• Higher-than-normal steam consumption
• Abnormal temperature difference across effects
• Difficulty maintaining stable vacuum



Likely Causes



You already mentioned the major ones—here：



1. Scaling or fouling on heat exchange tubes（>60% of cases）



• Salt crystallization: CaCl₂, Na₂SO₄, CaCO₃
• Organic fouling from high-COD wastewater
• Silica scaling (the most difficult to remove)
• Oil/grease films from chemical or food industries



Severe scaling reduces the heat transfer coefficient by 50–80%.



2. Steam leakage / insufficient primary steam pressure



• Gasket aging
• Improper bolt torque
• Steam trap malfunction
• Condensate not being discharged on time



3. Circulation pump performance decline



• Cavitation
• Impeller erosion
• Bearing wear
• Reduced NPSH due to pipeline buildup



4. Insufficient vacuum



• Air ingress
• Condenser blockage
• Undersized vacuum pump
• Liquid ring pump fluid deterioration



5. Incorrect operating parameters



• Feed temperature too low
• Material viscosity increases at high concentration
• Operating pressure deviates from design



How to Troubleshoot (Professional Workflow)



Step 1 — Heat Transfer Diagnostics



• Conduct a heat balance test
• Compare actual vs. design U-value
• Check temperature profiles across effects



Step 2 — Mechanical Inspection



• Measure ΔP of pipelines
• Inspect pump performance curves
• Check impeller wear thickness



Step 3 — Vacuum System Assessment



• Use helium leak detection
• Validate condenser cooling water flow
• Measure vacuum pump discharge temperature



Step 4 — Tube Condition Inspection



• Insert an endoscope to observe scale
• Measure fouling thickness
• If silica scale: prepare alkaline + chelating cleaning formula



Additional Recommended Actions



• Install an online fouling monitor
• Add anti-scalant chemicals for high-hardness wastewater
• Optimize feed preheating to reduce viscosity



Q2: The circulation pump shows cavitation or abnormal vibration. How to solve it?



Typical Symptoms



• Loud crackling noise (“gravel sound”)
• Sudden pressure fluctuation
• Vibration amplitude > 0.1 mm
• Honeycomb pits on impeller



Causes



1. Inadequate inlet pressure



• Tank level too low
• Strainer clogged
• Suction line too long
• Poor piping design (90° elbows too close to pump inlet)



2. Gas entrainment



• Air leaks in seals
• Gas released from supersaturated solution
• Gas accumulation at high points in the pipeline



3. Mechanical installation errors



• Soft foundation
• Pump misalignment
• Unbalanced impeller



Solutions



1. Optimize NPSH



• Increase suction liquid height（≥1.5 m static head）
• Enlarge suction pipeline
• Avoid unnecessary valves before pump inlet



2. Remove gas from the system



• Install a cyclone degasser
• Add vacuum deaeration before feed tank
• Install automatic vent valves at pipeline high points



3. Strengthen pump maintenance



• Laser alignment (accuracy ±0.02 mm)
• Quarterly impeller wear measurement
• Replace bearings annually in heavy-duty systems



4. Process Parameter Optimization



• Reduce feed viscosity via preheating
• Maintain turbulence in evaporation chamber
• Avoid oversized pumps that cause low-flow cavitation



Q3: The evaporator’s vacuum system is unstable. How to troubleshoot?



Typical Symptoms



• Vacuum cannot reach design value
• Secondary steam cannot fully condense
• Large fluctuations in temperature & pressure
• Condensate with bubbles



Causes (Expanded)



1. Condenser problems



• Cooling water flow too low
• Heat exchange tubes fouled
• High cooling-water temperature (summer issue)
• Improper condenser design for new production loads



2. Vacuum pump failures



• Damaged rotor
• Worn vanes / worn impeller
• Contaminated working fluid
• Overheated vacuum pump



3. System leakage



• Gasket hardening
• Improper flange torque sequence
• Micro cracks at welds
• Aging sight glass seals



Troubleshooting Steps



Step 1 — Vacuum Leak Diagnosis



• Helium mass spectrometer
• Pressure decay test
• Soap test for quick diagnosis



Step 2 — Condenser Management



• Mechanical descaling (≥100 bar)
• Acid cleaning using 5% citric acid
• Increase cooling water flow



Install secondary condenser for energy-intensive systems



Step 3 — Vacuum Pump Maintenance



• Replace oil
• Clean water-ring pump working fluid
• Check vane-to-cylinder clearance (0.05–0.08 mm)
• Replace vanes every 6–12 months



Advanced Tip



• Install vacuum buffer tank to stabilize negative pressure during load fluctuations.



Q4: Crystal particle size is uneven. How to optimize evaporation parameters?



Key Parameters



1. Supersaturation



• High supersaturation → fine particles
• Low supersaturation → large agglomerates



2. Circulation velocity



• <1.5 m/s → local crystallization
• 2.5 m/s → attrition (crystals break apart)



3. Residence time



• Too long → growth & agglomeration
• Too short → insufficient crystal growth



Effective Adjustments



1. Real-Time Monitoring



• Online brix, conductivity, density
• Feedback control of feed rate



2. Temperature Curve Optimization



• Avoid sudden cooling
• Use multi-stage cooling for crystallization



3. Seed Crystal Control



• Add 20–100 μm seed crystals
• Maintain 0.5–1% (w/w) addition
• Ensure uniform mixing



4. Mechanical/Structural Solutions



• Install internal baffles
• Modify circulation pump speed
• Use classification crystallizers for better size control



Q5: Frequent leaks at welds or flanges. How to eliminate the problem completely?



Common Leak Points



• Heating chamber welds
• Flange gaskets
• Sight glass seals
• Manhole covers
• Instrument ports



Root Causes



• Thermal stress fatigue
• Over-torque or uneven torque on flanges
• Corrosion due to chloride ions
• Vibration causing micro-movement
• Improper welding procedures



Solutions



1. Material Upgrades



• 316L stainless steel
• Titanium for high-chloride solutions
• Graphite/PTFE gaskets



2. Structural Optimization



• Double-side welding
• Radiographic inspection (RT)
• Expansion joints to absorb stress



3. Intelligent Monitoring



• Vibration sensors (10–1000 Hz)
• Thermal imaging for hot-spot detection
• Digital torque management for flanges



4. Preventive Maintenance



• Periodic gasket replacement
• Re-tightening after thermal cycles
• Annual weld inspection for high-temperature systems



Preventive Maintenance Schedule



Daily Checks



• Check steam inlet pressure

• Observe vacuum gauge stability

• Ensure cooling water flow & temperature are normal

• Confirm circulation pump noise/vibration

• Check for leaks in flanges & sight glass



Weekly Maintenance



• Clean strainers & filters

• Check pump shaft seal for leakage

• Record evaporation rate and compare trend

• Check condensate clarity & temperature

• Inspect drain valves and steam traps



Monthly Maintenance



• Vacuum pump fluid replacement (water/oil)

• Check inlet–outlet pressure difference

• Inspect motor alignment

• Check and clean condenser water side

• Lubricate pump bearings



Quarterly Maintenance



• Inspect impeller wear (≤2 mm allowed)

• Add fresh antifouling chemical if applicable

• Open sampling port to check scaling condition

• Tighten all flanges using torque sequence

• Inspect weld seams using dye penetrant



Annual Maintenance



• Full system descaling and cleaning

• Complete vacuum leak test using helium detector

• Replace all gaskets

• Conduct RT inspection of pressure-bearing welds

• Overhaul vacuum pump（replace vanes/seals/bearings）
• Evaluate overall energy consumption vs. design values
