LWS Three phase decanter centrifuge
Company Name :
JiangsuTusheng Centrifuge Manufacturing CO.,LTD.Brand :
TushengThe company has been committed to the R&D, production and sales of centrifuges, boasting rich experience in the design and manufacturing of separation equipment. Its products have obtained ISO 9001:2015 Quality Management System Certification, ISO 14001:2015 Environmental Management System Certification, and ISO 45001 Occupational Health and Safety Management System Certification. The various centrifuges produced are widely used in chemical industry, pharmaceutical industry, food industry, environmental protection, new energy, salt production and other fields. In 2018, the company introduced high-end technical talents and R&D teams in filtration and separation, invested heavily in purchasing automatic welding robots, CNC machining centers, 500-ton hydraulic presses and other equipment, and achieved mold-based production.
With an annual sales volume of 235 million RMB, the company has 185 employees, covering an area of nearly 20,000 square meters, including a workshop area of over 15,000 square meters. It owns more than 100 sets of various processing and testing equipment, such as large vertical lathes, hydraulic presses, turning-milling-planing machines, boring machines, plate shears, bending machines, X-ray flaw detectors, display-type universal material testing machines, universal plate bending machines, CNC laser cutting machines, microcomputer vibration aging devices, and dynamic balancing machines. The company offers a complete range of centrifuges, mainly including top discharge models (PSB, PSD), automatic bottom discharge scraper models (PGZ, LGZ, PAUT, PGD), and horizontal spiral discharge models (LW, LLW, LLWZ), etc.
·Flat vertical scraper automatic discharge centrifuge
·Flat-plate scraper bag shaking automatic discharge centrifuge
·Flat plate discharge centrifuge
·Horizontal screw concentration and filtration centrifuge
·Horizontal screw discharge sedimentation centrifuge

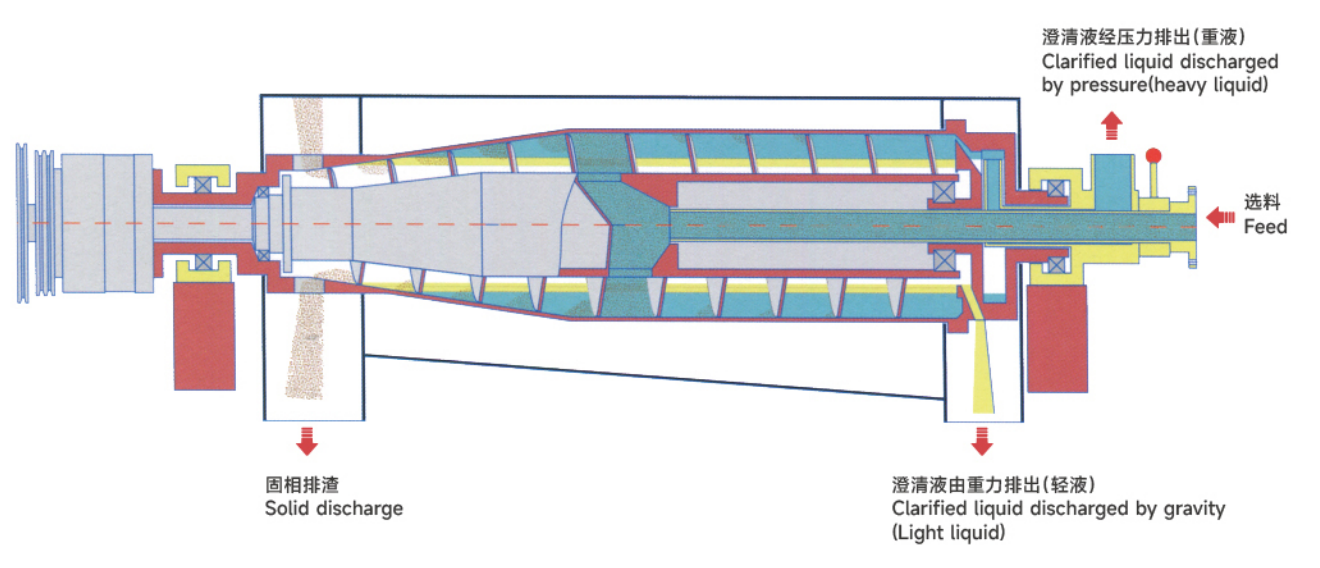

LWS series three phase decanter centrifuge is used for solid-liquid-liquid separation, namely one kind of solid phase ( with largest specific gravity) and two kind of immiscible liquid phase with different density The conveyor rotates in the same direction as the bowl, but at a different speed, the material is fed into the bowl through a stationary feed pipe. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl, while two liquid phases forming light liquid phase layer and heavy liquid phase layer Scroll conveys the solids towards the conical end of the bowl, and out of centrifuge from solid discharge port. The light liquid phase then is discharged out continuously through the overflow port at the large end of the bowl, and the heavy liquid phase will be discharged out through the centrifugal pump large end of the bowl, thus realizing the three-phase separation.
| Models | (mm)Bowl Diameter | L/D Ratio | (r/min)Bowl Speed | G-force | (kw)Main Motor Power | (kg)Weight | Dimension (L*W*H) |
|---|---|---|---|---|---|---|---|
| LWS355*1460 | 350 | 4.17 | 4000 | 3100 | 22 | 2020 | 3250*1000*1050 |
| LWS420*1680 | 420 | 4 | 3500 | 3080 | 30-37 | 3500 | 3450*1300*1300 |
| LWS530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 4200 | 4050*1650*1450 |
