Overcoming Processing Bottlenecks: A Guide to the Ultra-High Vacuum Molecular Pump System

For researchers and engineers working in surface analysis, plasma technology, and electric vacuum device manufacturing, reaching an ultra-high vacuum state quickly and reliably is a constant challenge. Piecing together individual pumps, gauges, and valves often leads to compatibility issues and leaks.

The FDS Series is designed to solve these exact integration and performance pain points. Here are the answers to the most critical questions about upgrading your lab with an advanced FDS double pump vacuum system.

Why is System Integration Crucial for Ultra-High Vacuum?

Procurement managers know that sourcing separate components—main pumps, backing pumps, and controllers—is a logistical nightmare. Compatibility mismatch can ruin experiments.

The Turnkey Advantage

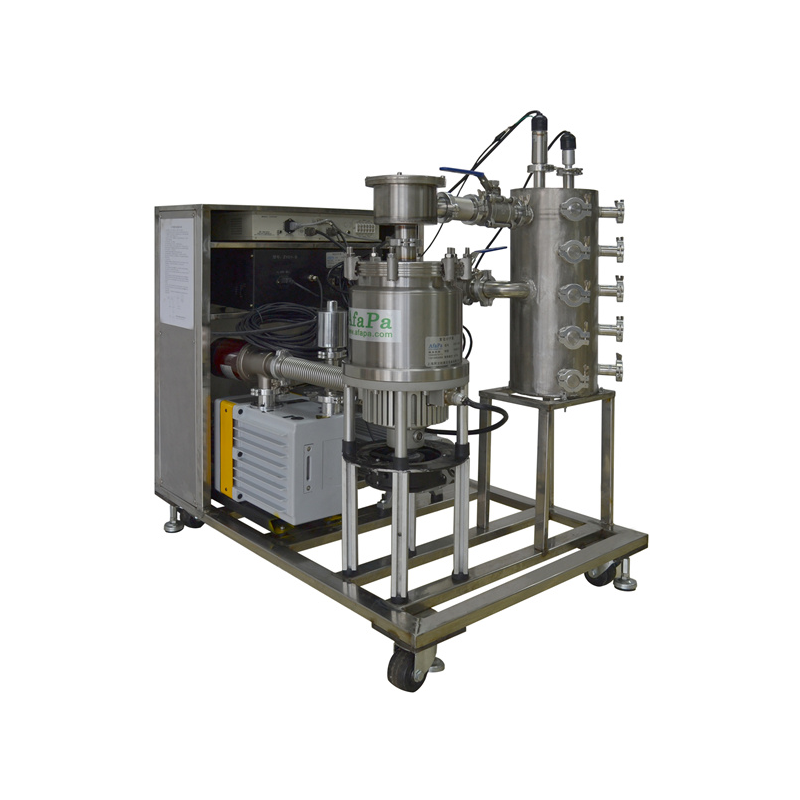

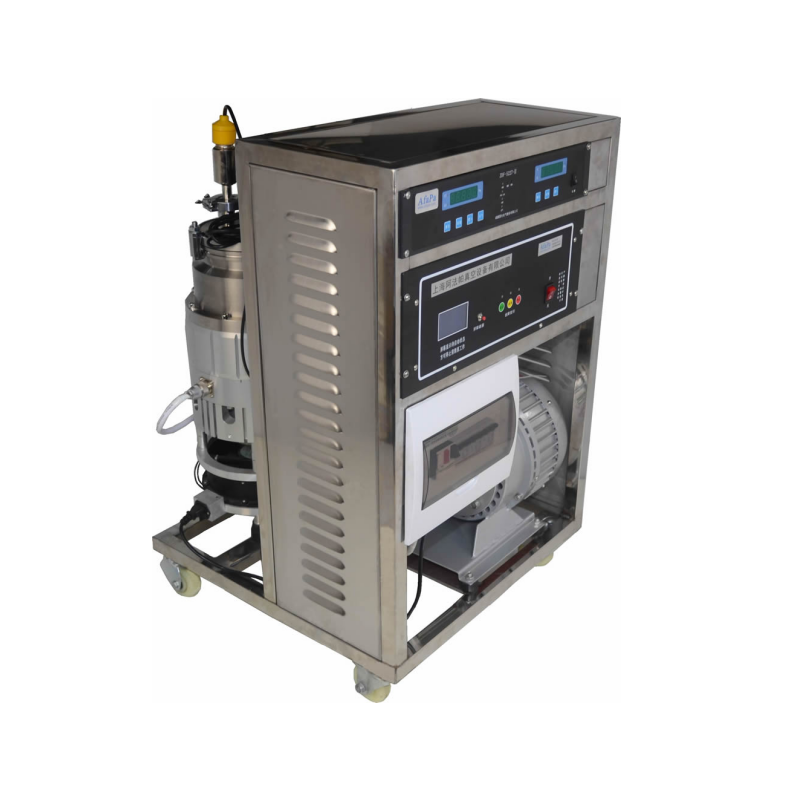

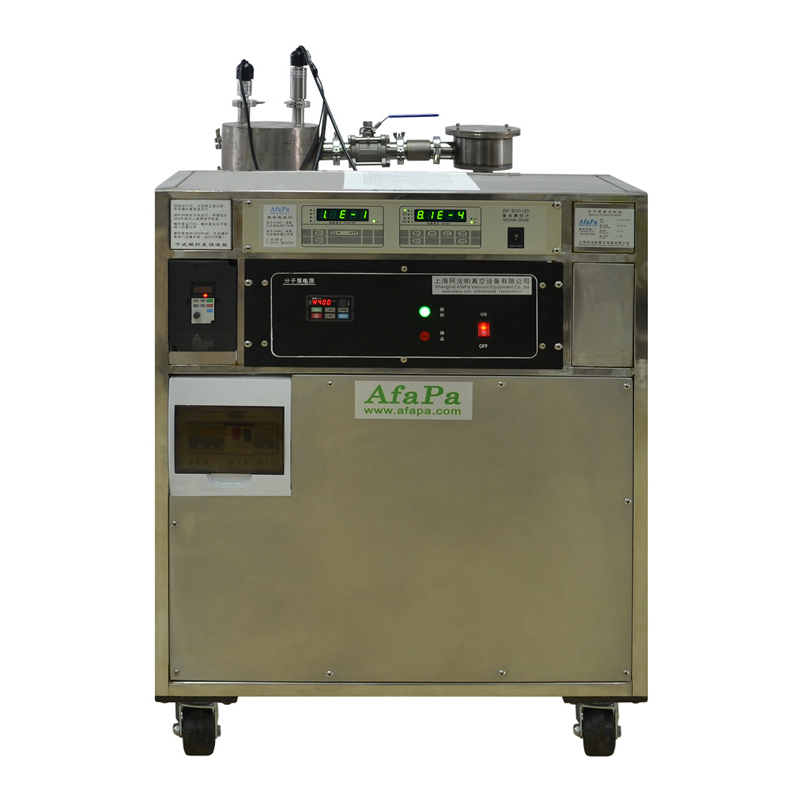

The FDS series is a fully integrated piece of equipment. By adopting a molecular vacuum pump and dry vacuum pump (or double-stage rotary vane pump) connected in series, the system completely eliminates compatibility guesswork. It comes fully equipped with a pre-pipeline, vacuum valves, a dedicated power control box, and a composite vacuum gauge straight out of the factory.

How Fast Can We Achieve the Required Ultimate Vacuum?

Time is money in semiconductor equipment vacuum systems and accelerator technology. Long pump-down times severely limit daily production or experimental throughput.

Rapid Start-Up and Extreme Pressure

Traditional setups can take hours to stabilize. The FDS series is engineered for speed, boasting a starting time of < 5 minutes across all models. Once operational, whether you are using the FDS600/20 or the FDS1600/80, the system reliably achieves an exceptional ultimate vacuum of $6 \times 10^{-6}$ Pa. This makes it the premier choice as ultra-high vacuum equipment for surface analysis where absolute purity is required.

Which Model Meets Our Facility's Pumping Speed Requirements?

Scalability is vital. The FDS series offers three distinct configurations to match your vapor load and chamber size:

• FDS600/20: Delivers a pump speed of > 600 L/S. It utilizes an air or water-cooled method and weighs just 28 kg, making it perfect for compact, localized testing stations.

• FDS1200/40: Offers a pump speed of > 1200 L/S, balancing footprint and higher throughput.

• FDS1600/80: Built for heavy-duty industrial applications, providing > 1600 L/S pump speed. This unit relies on robust water cooling to maintain continuous peak performance.

Ready to Eliminate Vacuum Instability in Your Lab?

Investing in an integrated, factory-tested system reduces downtime, prevents contamination, and ensures repeatable results in your most critical applications.

If you are ready to streamline your facility's pumping architecture, it is time to buy ultra-high vacuum molecular pump solutions that guarantee performance. Contact our engineering team today for technical schematics and custom B2B quotes on the complete FDS series.
