In industrial solid-liquid separation processes, incomplete filter cake removal is a persistent source of lost efficiency, extended downtime, and elevated labor costs. Many conventional centrifuges leave residual solids on basket walls, require frequent manual cleaning, and carry contamination risks from belt drive friction dust. This guide breaks down PAUT top-suspended bottom discharge scraper centrifuges, explaining how their design resolves common discharge challenges, core technical specifications, selection criteria, and customization options for your production needs.

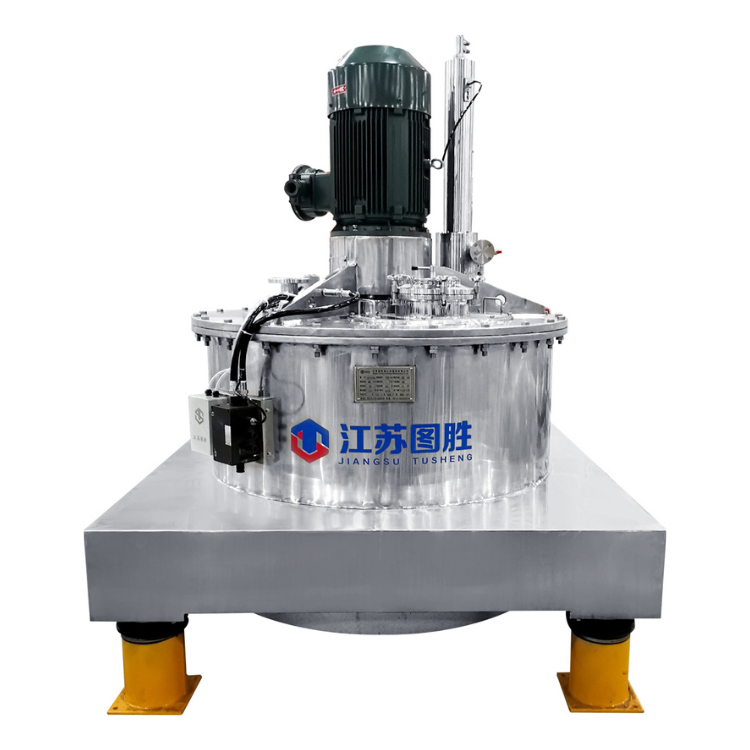

What Are PAUT Top-Suspended Bottom Discharge Scraper Centrifuges?



PAUT top-suspended bottom discharge scraper centrifuges are fully automatic vertical solid-liquid separation devices designed for batch processing. They integrate a top-mounted direct drive system and hydraulic bottom scraper mechanism to deliver consistent, clean cake discharge without manual intervention.



This equipment directly addresses the core pain point of incomplete cake removal in standard centrifuges. By combining a rigid basket structure with precision scraping and optional residual cake clearance systems, it minimizes leftover solids between batches, reduces cleaning time, and maintains consistent separation throughput.



The design is particularly suited for processes that demand high hygiene standards, explosion-proof compliance, or high-volume batch production, where manual scraping would introduce safety or contamination risks.



Core Working Principle of Top-Suspended Scraper Centrifuges



The operation of a PAUT vertical scraper centrifuge follows a standardized batch cycle, with each step controlled automatically to ensure repeatable performance. The full process proceeds as follows:



1. Low-speed feeding: Process material is fed into the rotating basket through side feeding tubes while the basket runs at a low, controlled speed to ensure even distribution of solids.
2. High-speed separation: Basket speed increases to rated operating speed, generating centrifugal force that pushes liquid through the filter medium. Solids accumulate as a uniform filter cake on the inner basket wall.
3. Cake washing (optional): Wash liquid is introduced to remove residual mother liquor or soluble impurities from the filter cake, as required by product specifications.
4. Dewatering: The basket maintains high-speed rotation to reduce cake moisture content to the target level.
5. Scraper discharge: Basket speed decreases to discharge speed, and the hydraulic scraper blade descends to cut the cake cleanly from the basket wall. The cake falls freely through the bottom discharge outlet.
6. Residual cake clearance: Optional gas back-blowing or assisted scraper systems remove any remaining thin layer of solids from the basket wall to prepare for the next batch.



Each cycle can be programmed to match specific material properties and process requirements, delivering consistent results across production runs.



Key Technical Features & Operational Advantages



PAUT bottom discharge scraper centrifuges incorporate several design elements that improve operational stability, reduce maintenance, and enhance discharge performance. Each feature delivers measurable practical benefits for production teams:



Top-Mounted Direct Drive Alignment

The motor and rotating basket share a central vertical axis, with the drive unit mounted directly above the basket. This design eliminates the need for belt drives, removing the risk of friction dust contamination and reducing wear-related downtime. The aligned center of rotation also delivers smoother, more stable operation with lower vibration levels.



Foundation-Free Installation With Liquid Damping

Built-in liquid damping vibration absorbers absorb operational vibration, eliminating the need for a dedicated concrete foundation. This reduces installation time and civil engineering costs, simplifies equipment relocation during production line adjustments, and improves access for routine maintenance tasks.



High Load Capacity With Optimized Structure

The centrifuge features a large length-diameter ratio basket, an independent bearing seat, and a wide bearing support span with a low basket gravity center. This rigid structure delivers higher load capacity per batch, maintains stability even at full load, and extends bearing service life through reduced radial stress.



Fully Automatic Program Control

All operational steps are managed by programmable control systems, enabling fully automatic batch cycles without continuous manual operation. This reduces labor requirements, ensures consistent process parameters across batches, and lowers operator exposure to process materials.



Integrated Safety & Explosion-Proof Capability

The base design supports a full range of safety protection features, including optional nitrogen protection systems for explosive or flammable material processing. Multiple interlock and monitoring features maintain safe operating conditions and align with ATEX directive standards for explosive atmospheres.



Industrial Application Scenarios



PAUT scraper discharge centrifuges are widely used across industries that require reliable solid-liquid separation with clean discharge. Common application areas include:



• Pharmaceutical manufacturing: Separation of API crystals, antibiotic filtration, herbal extract concentration, and intermediate product dewatering. Smooth surface finishes support GMP-compliant production and clean-in-place processes.
• Fine chemical processing: Crystal separation for chemical intermediates, pesticide and dye production, and pigment dewatering. Explosion-proof configurations support processing of materials with flammable solvents.
• Food and beverage production: Starch dewatering, sugar crystal separation, salt refining, and food additive processing. Food-grade contact materials meet industry hygiene requirements.
• Environmental treatment: Industrial sludge dewatering, wastewater solid recovery, and byproduct separation from waste streams.



Each application can be customized with specific coatings, surface treatments, and safety features to match process requirements.
