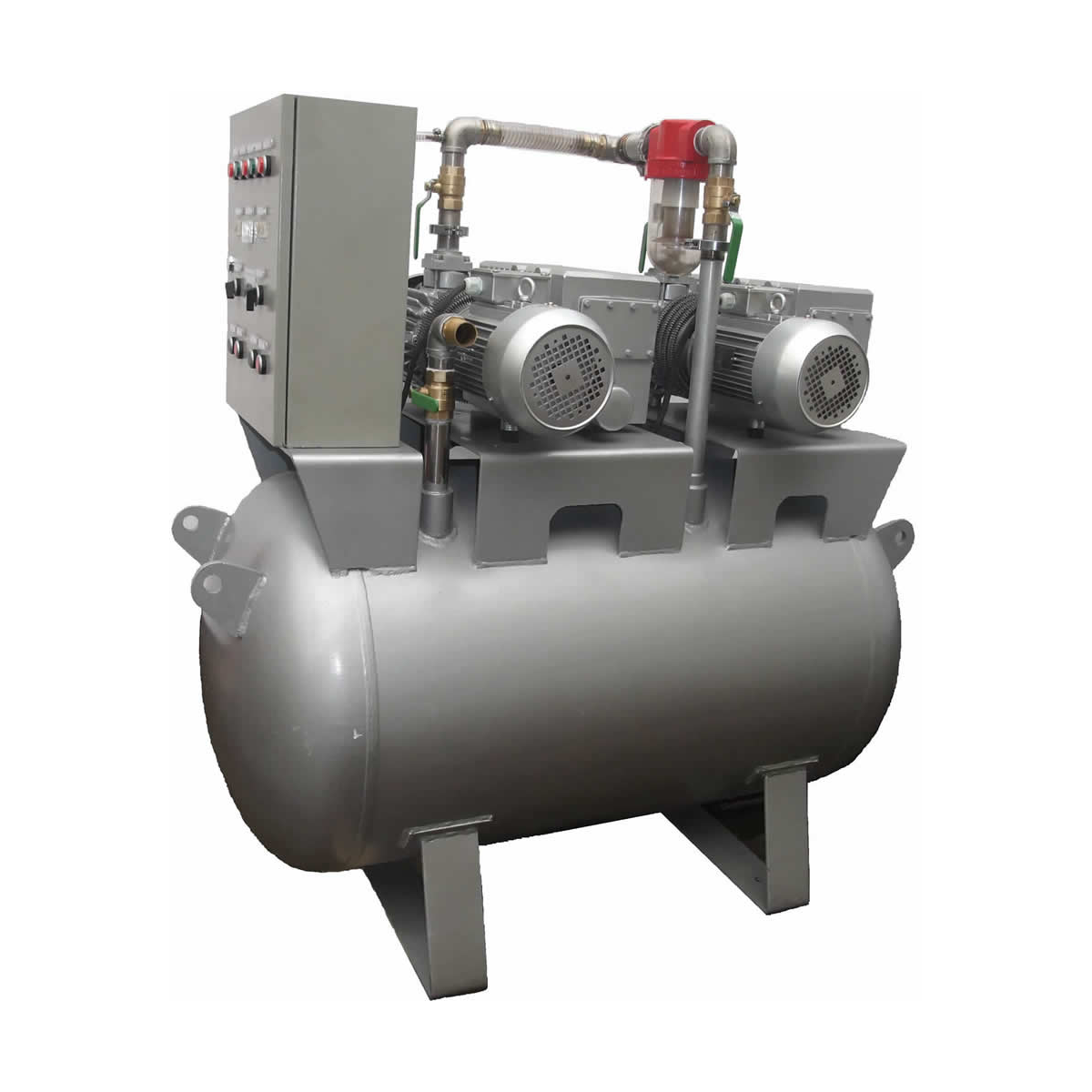

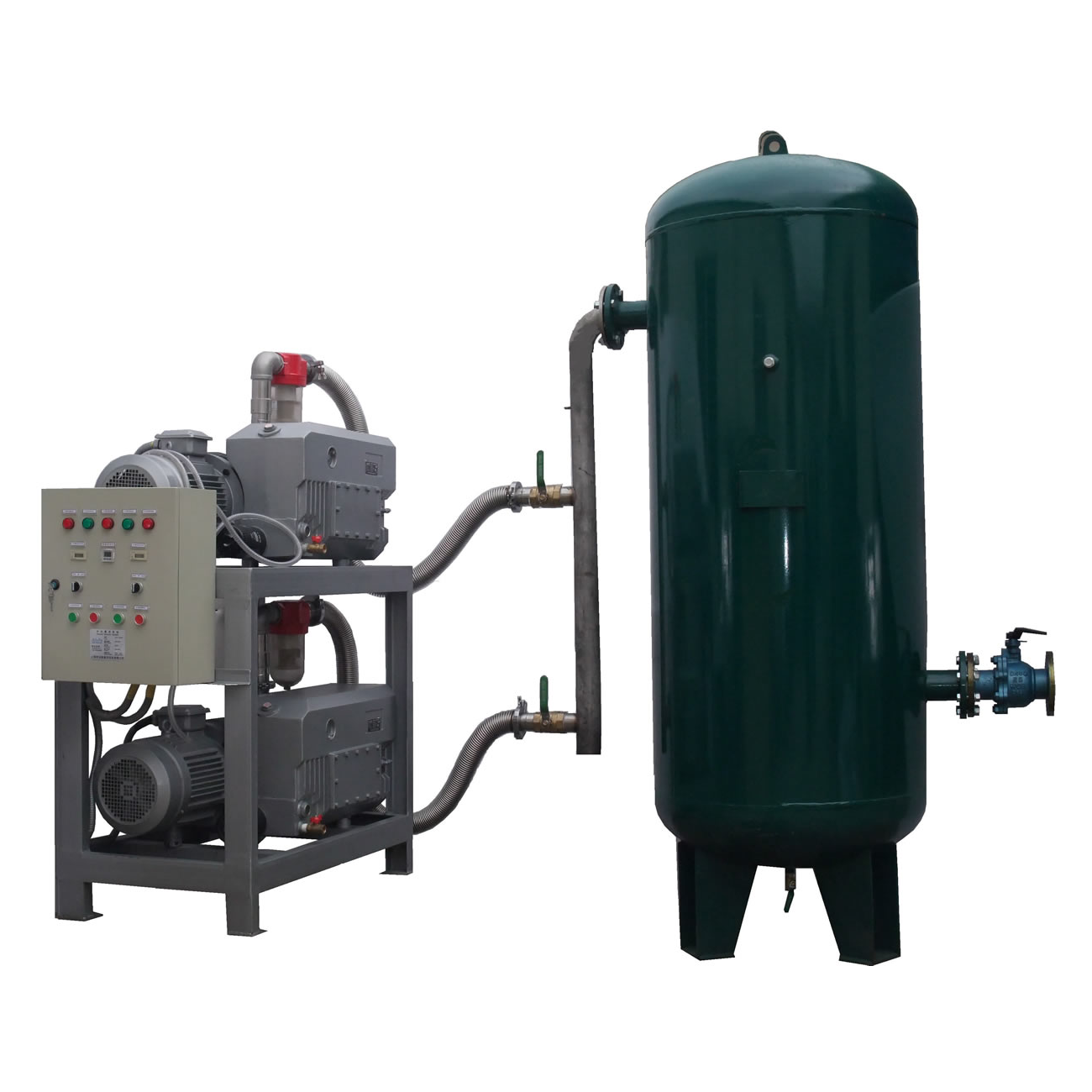

CVS central vacuum system is all-in-one vacuum equipment, consist of SV single stage rotary vane vacuum pump, vacuum tank, vacuum gauge, electric controller and vacuum pipes.
Company Name :
Shanghai AFAPA Vacuum Equipment Co., ltd.Brand :
AFAPA
Vacuum Pump
Vacuum System/Station
Vacuum Accessories
Features
· Environmental protection and high efficiency vacuum pump,
· Manual and automatic can be choose, vacuum degree can adjust,
· Easy to operating, big pumping speed, satisfy with any medical operation’s big flow rate vacuum needs,
· Easy to moving, small space, no need pump house, can install anywhere,
· All-in-one CVS series is enterprises’ first choice vacuum system
Technical Specifications
|
Model
|
Pumping Speed
(m(3)/h)
|
Vacuum Pump
|
Quantity
(Pcs)
|
Vacuum Degree（MPa）
|
Vacuum Tank
(L)
|
|
CVS-1X010
|
10
|
SV-010
|
1
|
0~-0.1
|
60~300
|
|
CVS-1X020
|
20
|
SV-020
|
1
|
0~-0.1
|
60~300
|
|
CVS-1X040
|
40
|
SV-040
|
1
|
0~-0.1
|
60~300
|
|
CVS-1X063
|
63
|
SV-063
|
1
|
0~-0.1
|
60~300
|
|
CVS-1X100
|
100
|
SV-100
|
1
|
0~-0.1
|
60~300
|
|
CVS-1X160
|
160
|
SV-160
|
1
|
0~-0.1
|
300~2000
|
|
CVS-1X250
|
250
|
SV-250
|
1
|
0~-0.1
|
300~2000
|
|
CVS-1X300
|
300
|
SV-300
|
1
|
0~-0.1
|
300~2000
|
|
CVS-2X010
|
20
|
SV-010
|
2
|
0~-0.1
|
60~300
|
|
CVS-2X020
|
40
|
SV-020
|
2
|
0~-0.1
|
60~300
|
|
CVS-2X040
|
80
|
SV-040
|
2
|
0~-0.1
|
300~2000
|
|
CVS-2X063
|
126
|
SV-063
|
2
|
0~-0.1
|
300~2000
|
|
CVS-2X100
|
200
|
SV-100
|
2
|
0~-0.1
|
300~2000
|
|
CVS-2X160
|
320
|
SV-160
|
2
|
0~-0.1
|
300~2000
|
|
CVS-2X250
|
500
|
SV-250
|
2
|
0~-0.1
|
300~2000
|
|
CVS-2X300
|
600
|
SV-100
|
2
|
0~-0.1
|
300~2000
|
|
CVS-3X160
|
480
|
SV-160
|
3
|
0~-0.1
|
300~2000
|
|
CVS-3X250
|
750
|
SV-250
|
3
|
0~-0.1
|
300~2000
|
|
CVS-3X300
|
900
|
SV-300
|
3
|
0~-0.1
|
300~2000
|
