Product Details

Advantage

Adopt an advanced and reliable PI high-frequency full-range wide power control scheme, which complies with global electricity network power supply standards. Through 16-bit MCU-controlled PWM speed regulation, it can more accurately control voltage, current, speed and effective centrifugal time — ensuring stable performance in harsh operating environments, extending motor service life, and reducing electromagnetic noise;

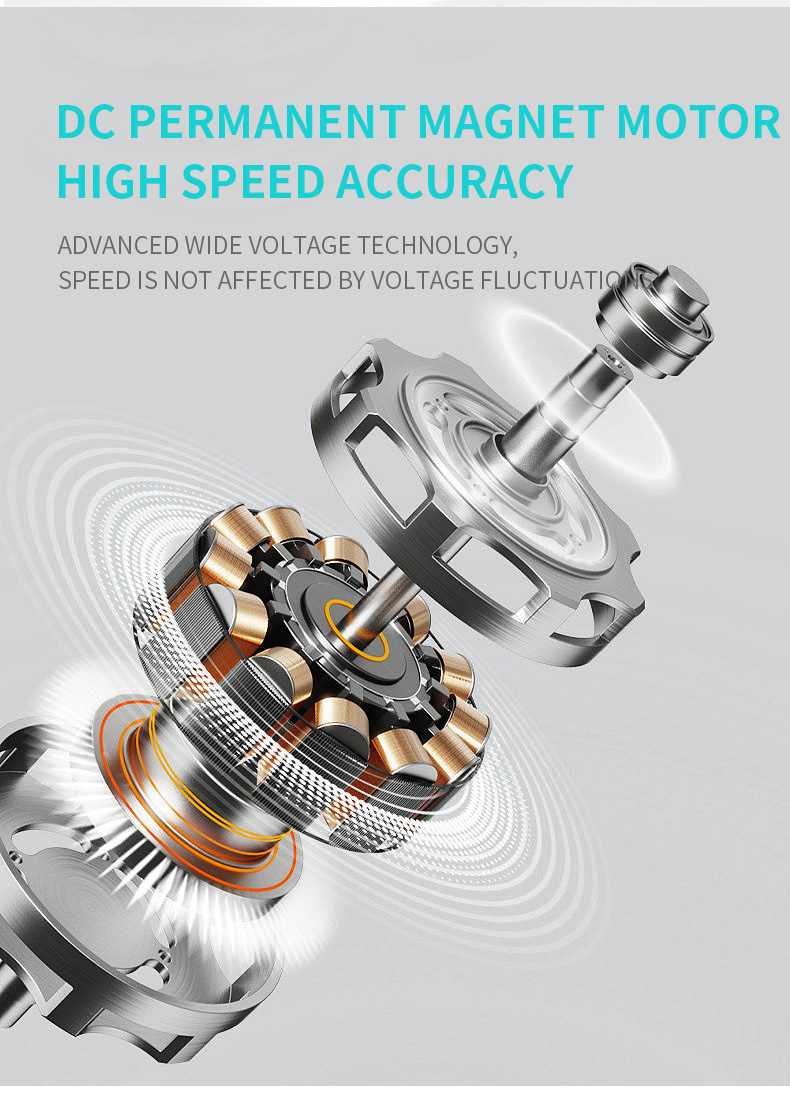

Equipped with a reliable and durable DC permanent magnet motor, with a wider speed range of 1000~7000rpm and an accuracy of ±5%. Centrifugal speed is adjusted in 500rpm steps, and the effective centrifugal time range is 1-99 minutes or 1-59 seconds;

Faster acceleration/deceleration rate, helping to complete experiments in a shorter time;

The high-strength main machine and rotor materials can resist various chemical corrosions, and the rotor has a high-temperature-resistant anti-toxic function;

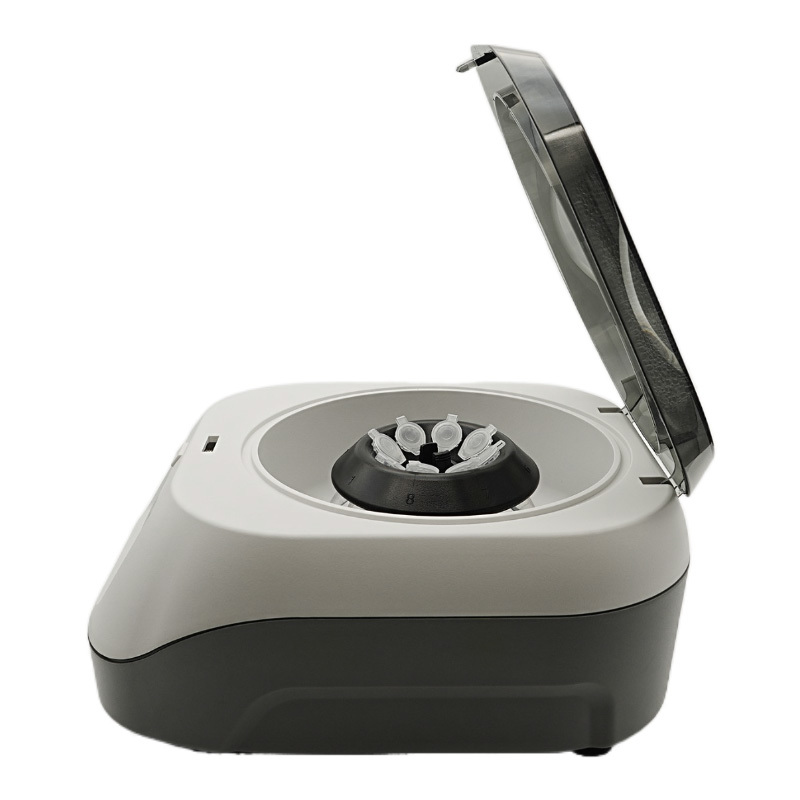

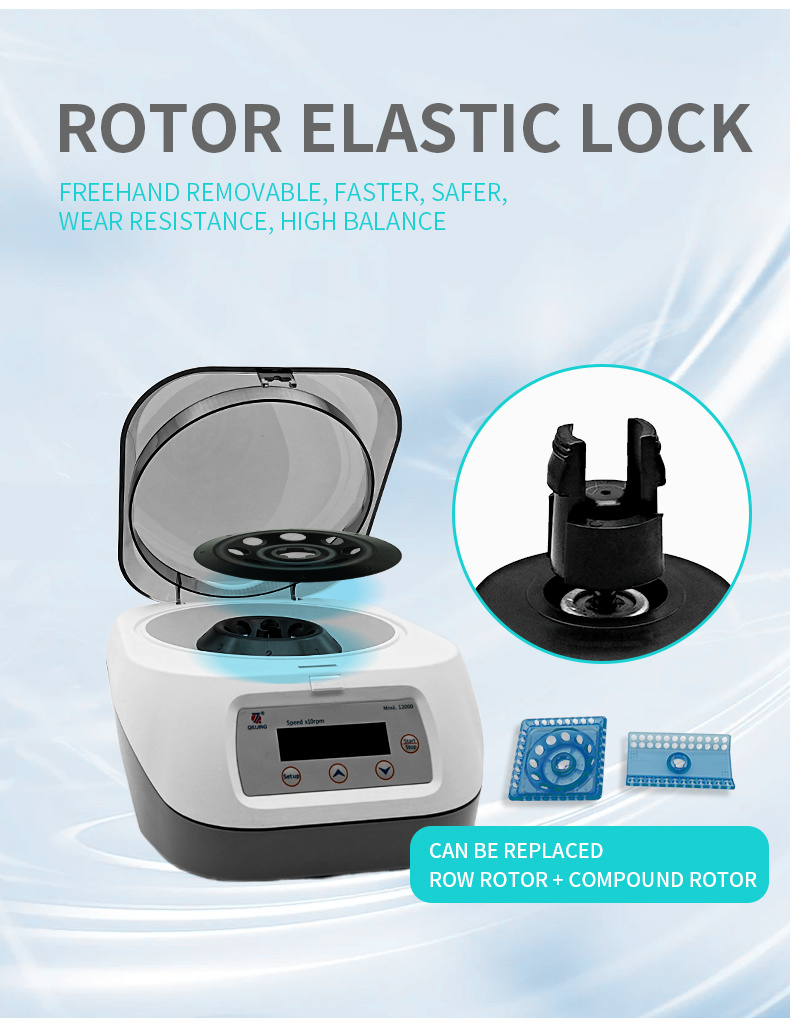

Unique swivel snap-mounting design: the swivel can be easily replaced without any tools, making it more convenient and fast for laboratory inspection personnel to change the rotor;

The innovative composite test tube rotor is compatible with multiple types of test tubes, meeting basic testing needs without the need to replace the rotor;

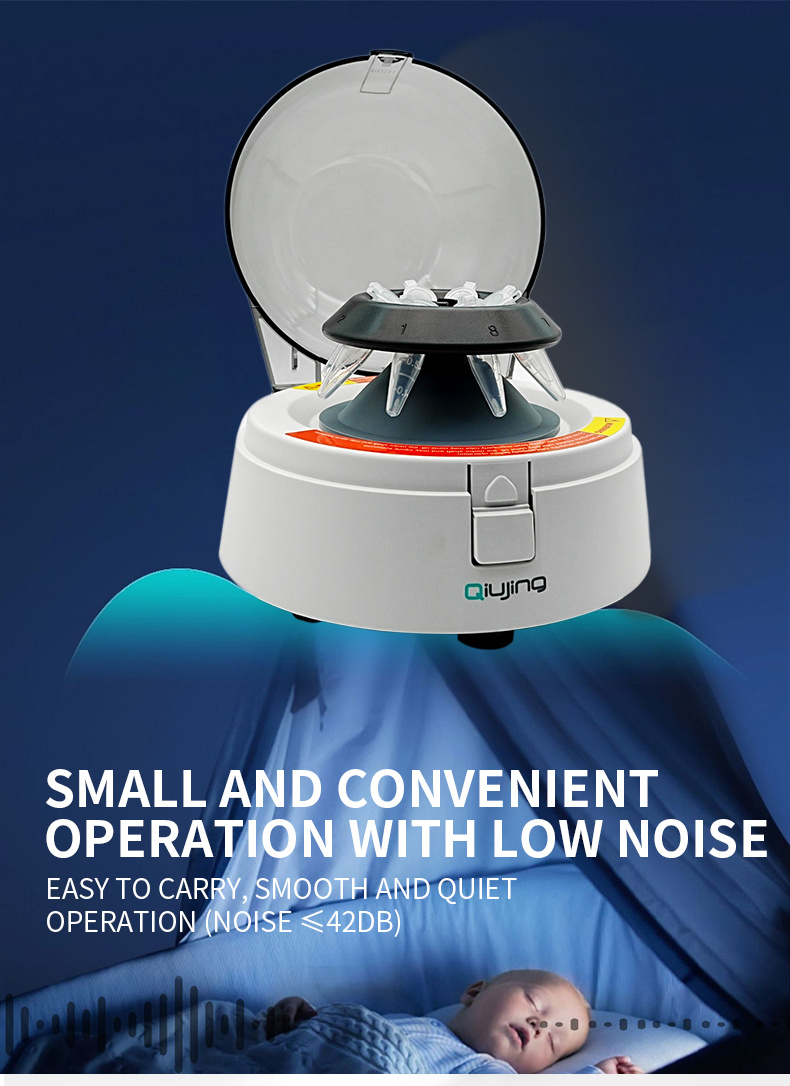

Rubber shock-absorbing material ensures stable operation. The rotation space is 360° (no dead angle), featuring small wind resistance, low temperature rise, super-quiet performance, and a machine noise level of <60dB;

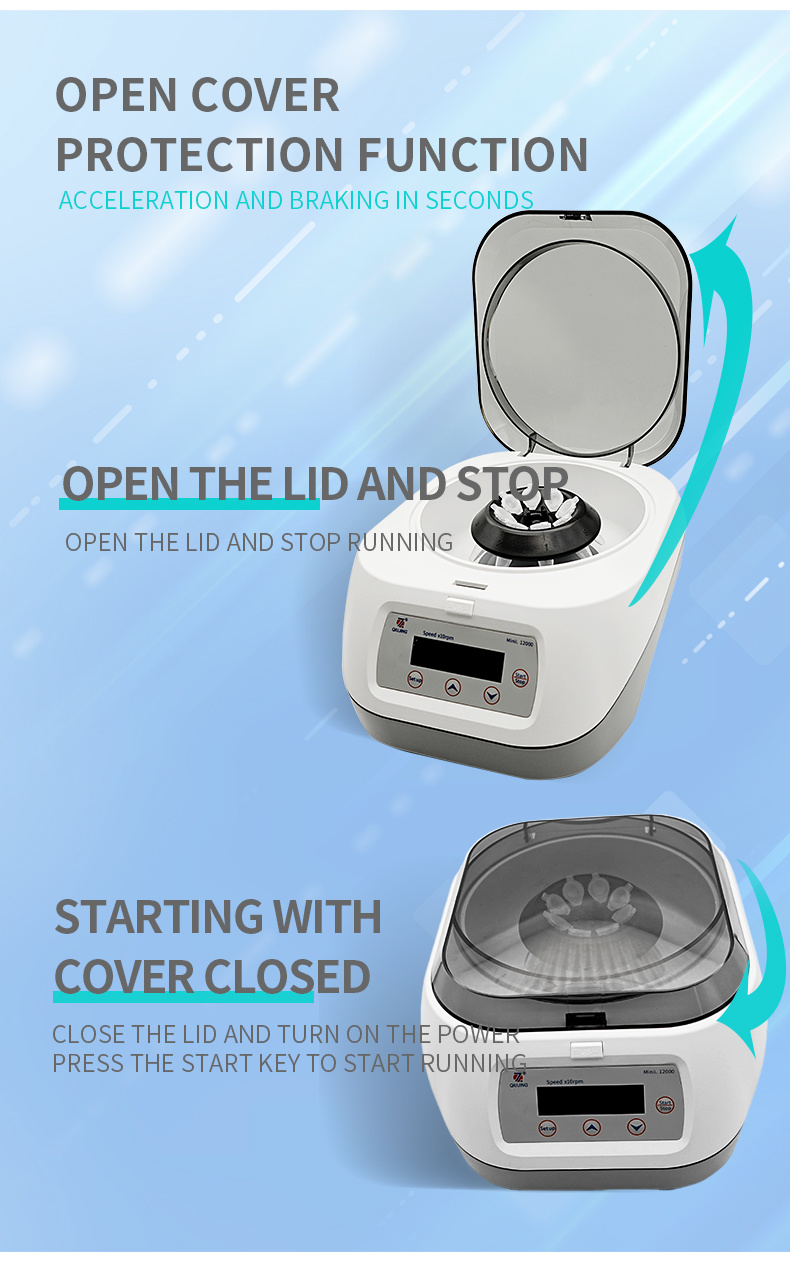

Door cover operation ensures safe instrument use: at the end of operation (or in case of errors/imbalance), an audio signal will prompt; the centrifuge will stop running, and the LCD will display the result code

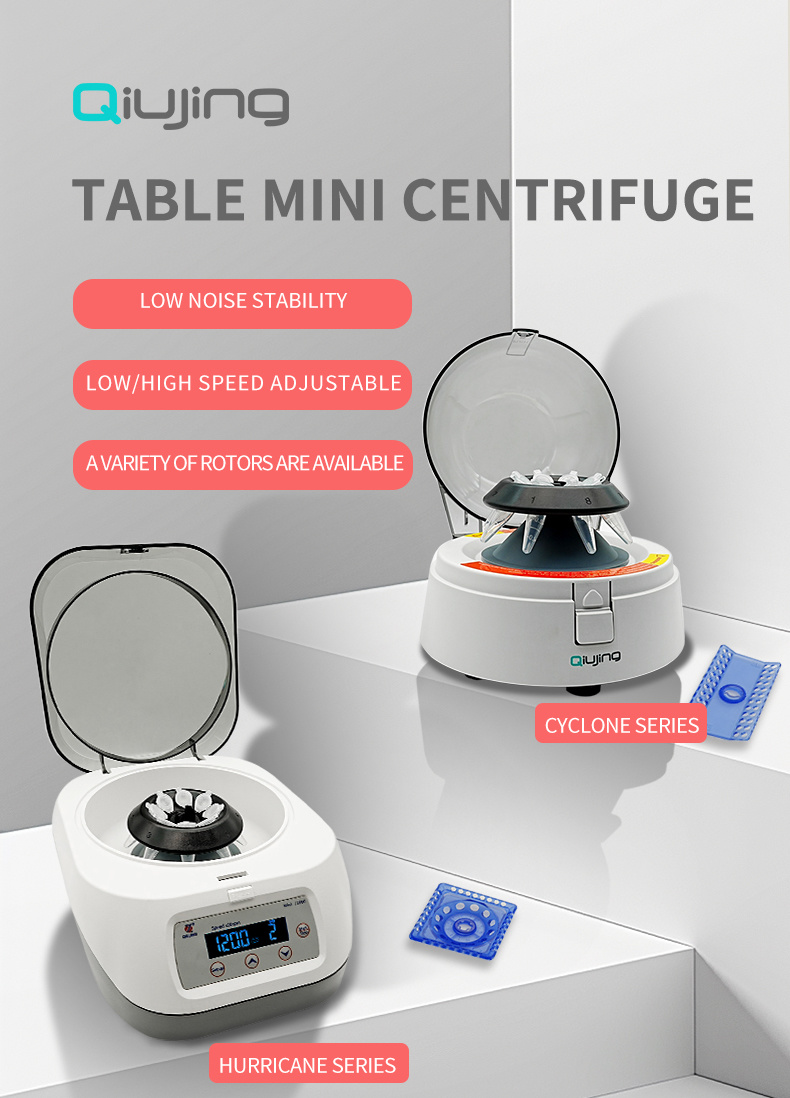

Mini centrifuges are essential tools for laboratories requiring fast, reliable sample processing in a compact form factor. This article highlights the advantages of compact and efficient mini centrifuges, providing insights into daily laboratory applications, operational tips, and why models like the Cyclone and Whirlwind Series are ideal for routine sample separation tasks.

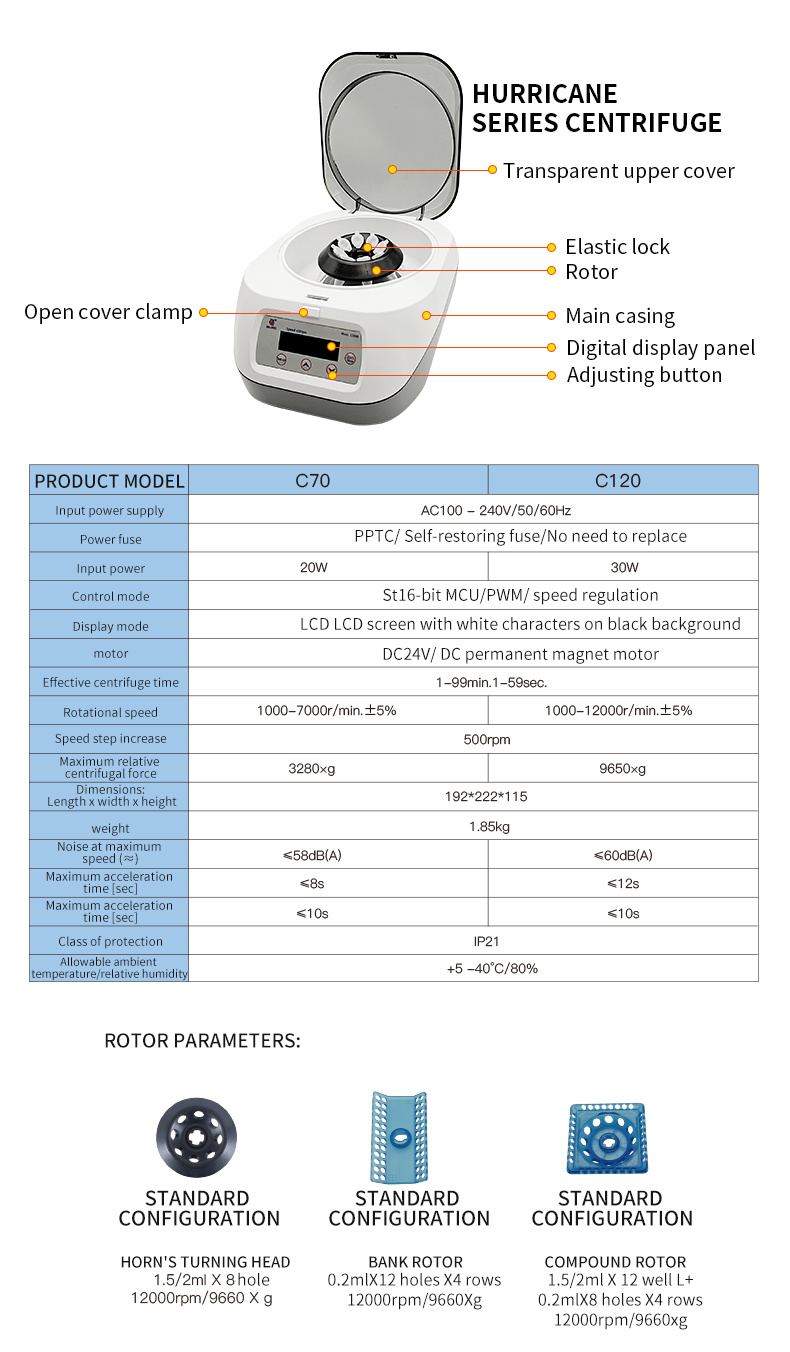

Host Parameter	Specification
Product Model	C70
Input Voltage	AC100 - 250V/50/60Hz
PowerFuse	PPTC/ Self-restoring fuse/No need to replace
Input Power	20W
Control Mode	St16-bit MCU/PWM/ speed regulation

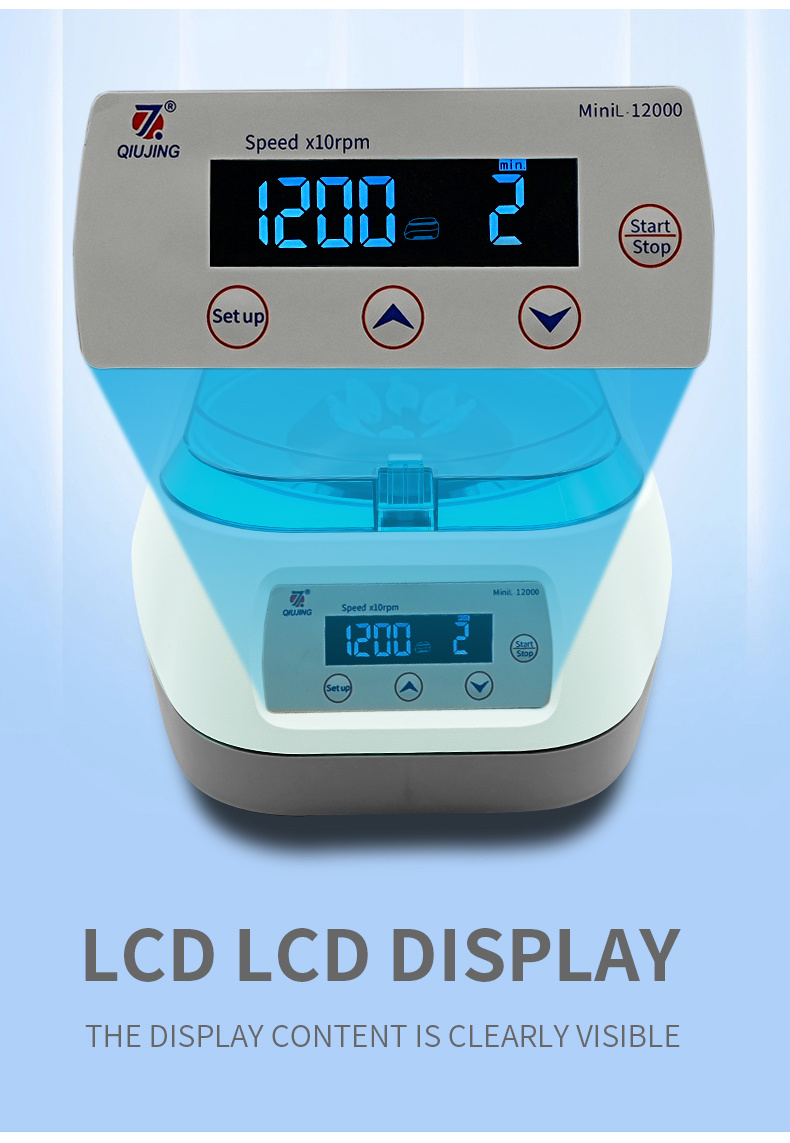

Display Mode	LCD screen with white characters on black background
Motor	DC24V/ DC permanent magnet motor
Effective Centrifuge Time	1-99min.1-59sec.
Rotational Speed	1000-7000rpm±5%
Speed Step Increase	500rpm
Max.RCF	3286×g
Dimensions: Length × Width × Height	192mm×222mm×115mm
Weight	1.85Kg
Noise at max. Speed (≈	≤58dB(A)
Fastest Acceleration Time [sec]	≤8s
Fastest Deceleration Time [sec]	≤10s
Protective Class	IP21
Allowable Ambient Temperature /Relative Humidity	+5 -40℃/80%
Interference Suppression Standard	EN 61010 -1,EN 61010 - 2,EN 61326 -1,EN 61010 - 3 - 2/A2
