Advantage

Using advanced and reliable PI high-frequency full-range wide power supply control scheme, which complies with AC100-240V/50/60Hz input power supply. It can more accurately control voltage, current, speed and relative centrifugal force to ensure that its constant speed will not change with voltage or load changes;

Unique rotor head snap-on installation design: without any tools, one can easily change the swivel, allowing the experimenter to replace the rotor more conveniently and fast;

Equipped with an efficient DC permanent magnet motor; rubber material can absorb shock, which ensures stable operation. The rotation space has 360° no dead angle, with small wind resistance, small temperature rise, super quiet operation, and machine noise < 42dB;

Faster acceleration/deceleration rate, which helps complete the experiment in a shorter time: acceleration can reach over 95% of the rated speed within 5 seconds; press the door-opening button for free parking (< 5 seconds);

High-strength main machine and rotor material, which can resist various chemical corrosions; the rotor has a high-temperature-resistant disinfection function;

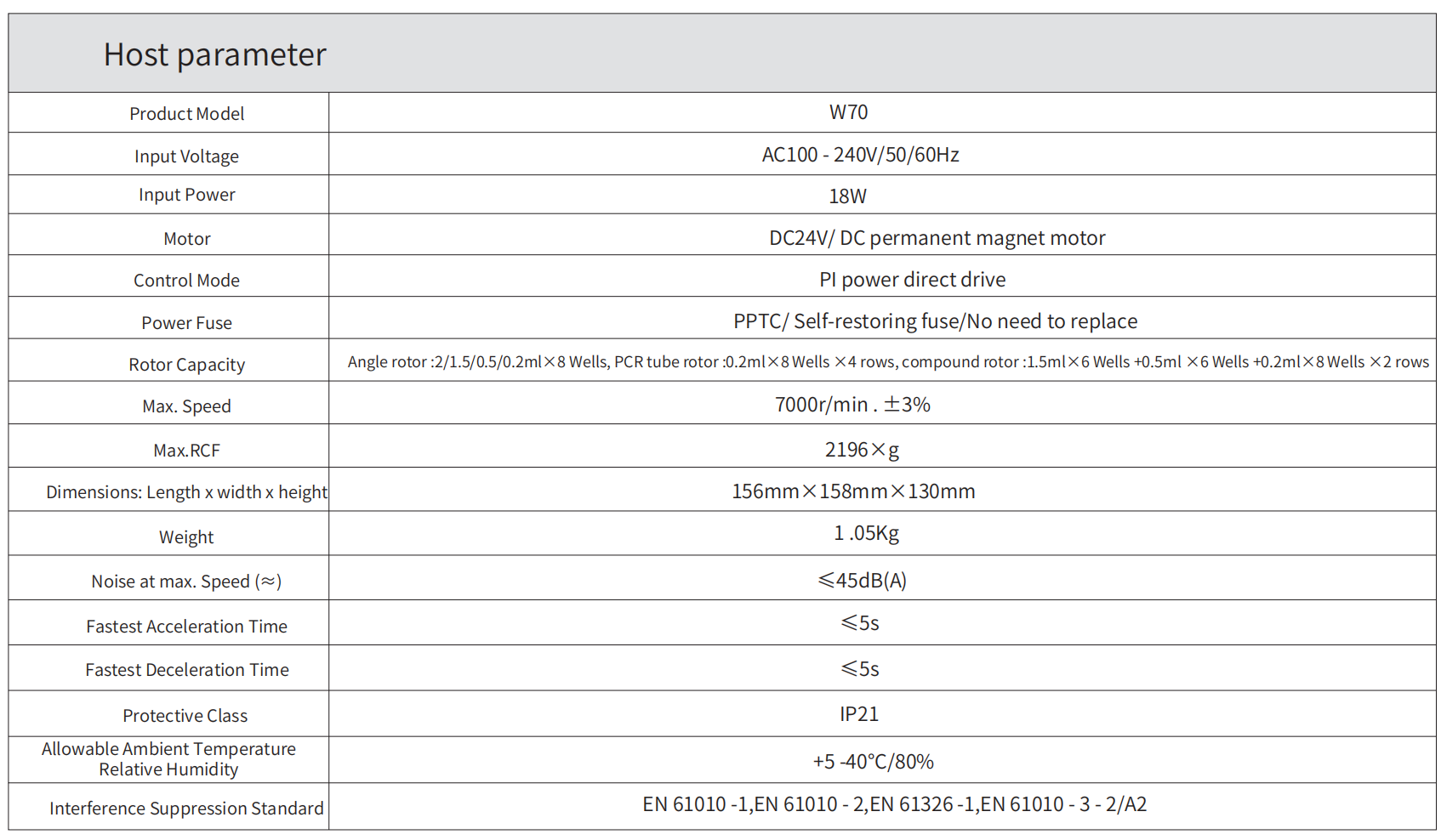

Parameter	Specification
Product Model	W70
Input Voltage	AC100 - 240V/50/60Hz
Input Power	18W
Motor	DC24V/ DC permanent magnet motor
Control Mode	PI power direct drive
Power Fuse	PPTC/ Self-restoring fuse/No need to replace
Rotor Capacity	Angle rotor:2/1.5/0.5/0.2ml×8 Wells, PCR tube rotor:0.2ml×8 Wells ×4 rows, compound rotor:1.5ml×6 Wells +0.5ml ×6 Wells +0.2ml×8 Wells ×2 rows
Max. Speed	7000r/min . ±3%
Max.RCF	2196×g
Dimensions: Length x width x height	156mm×158mm×130mm
Weight	1.05Kg
Noise at max. Speed (≈)	≤45dB(A)
Fastest Acceleration Time	≤5s
Fastest Deceleration Time	≤5s
Protective Class	IP21
Allowable Ambient Temperature Relative Humidity	+5 -40℃/80%
Interference Suppression Standard	EN 61010 -1,EN 61010 - 2,EN 61326 -1,EN 61010 - 3 - 2/A2

Mini centrifuges are essential tools for laboratories requiring fast, reliable sample processing in a compact form factor. This article highlights the advantages of compact and efficient mini centrifuges, providing insights into daily laboratory applications, operational tips, and why models like the Cyclone and Whirlwind Series are ideal for routine sample separation tasks.
